Emerson ZP42K5E-PFV-800 Compressor, 208-230/1 1/2 inches x 7/8 inches Scroll A/C Compliant

Product Description

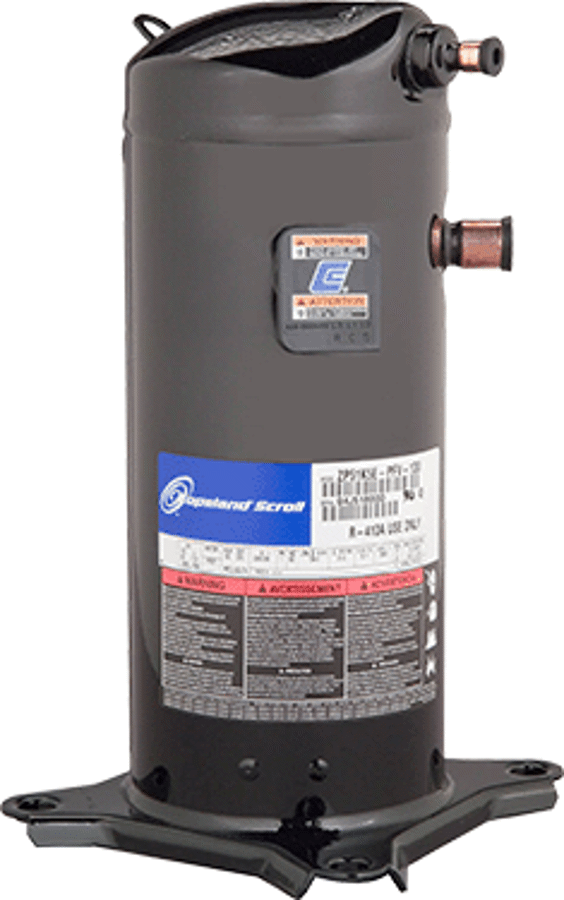

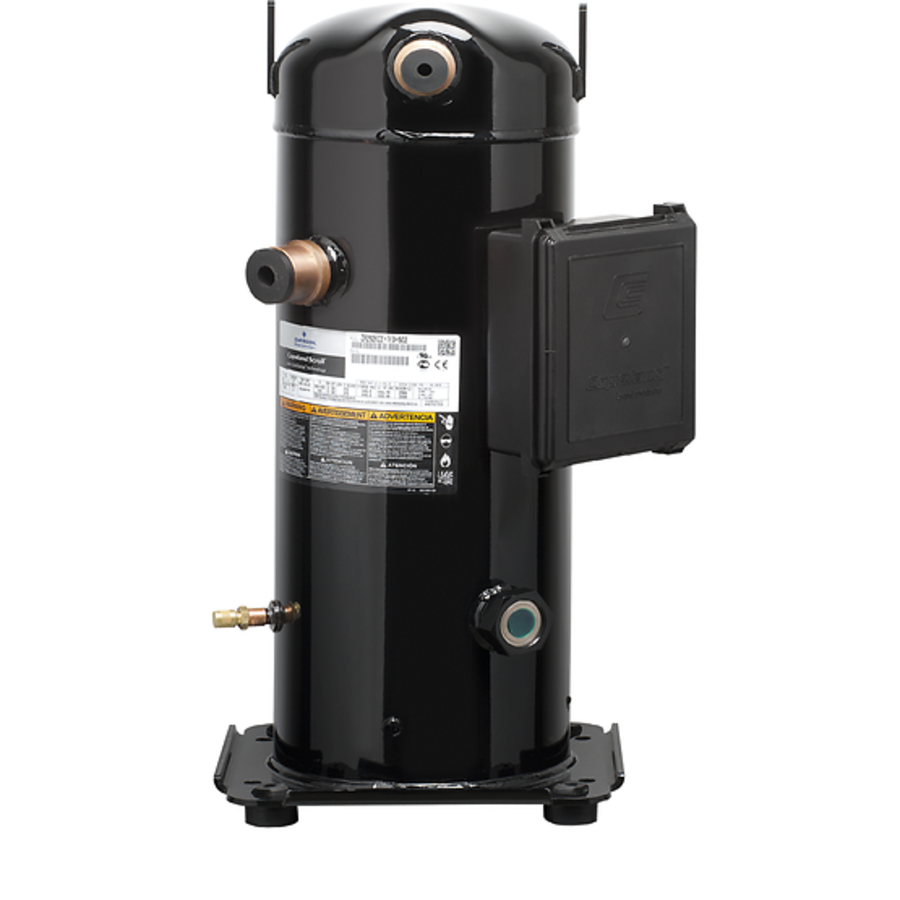

The EMERSON ZP42K5E-PFV-800 is a compressor with 208-230/1 1/2" x 7/8" scroll designed for A/C compliant HVAC applications. It features internal inherent protection and a capacitor run-permanent split capacitor motor type. This compressor has a tonnage of 4 ton, a power rating of 4070 W, and uses R-410A refrigerant.

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection
• Compressor family Series

Product Highlights

The EMERSON ZP42K5E-PFV-800 is ideal for air conditioning systems, providing efficient and reliable cooling performance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZP42K5E-PFV-800

Technical Specifications

• Application: HVAC
• Phase: 1
• Volts: 208/230
• Amperage Rating: 18.35 A
• BTU Rating: 42000 Btu/hr
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Discharge Line Size: 1/2 in Stub
• EER Rating: 10.3 to 21.35
• Power Rating: 4070 W, 3-1/2 hp
• Refrigerant Type: R-410A
• Series: ZP
• Sound Level: 68 to 73 dBA
• Speed Rating: 3500 rpm
• Suction Line Size: 7/8 in Stub
• Temperature Rating: 45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid
• Tonnage: 4 ton
• Voltage Rating: 200/208 to 230 VAC
