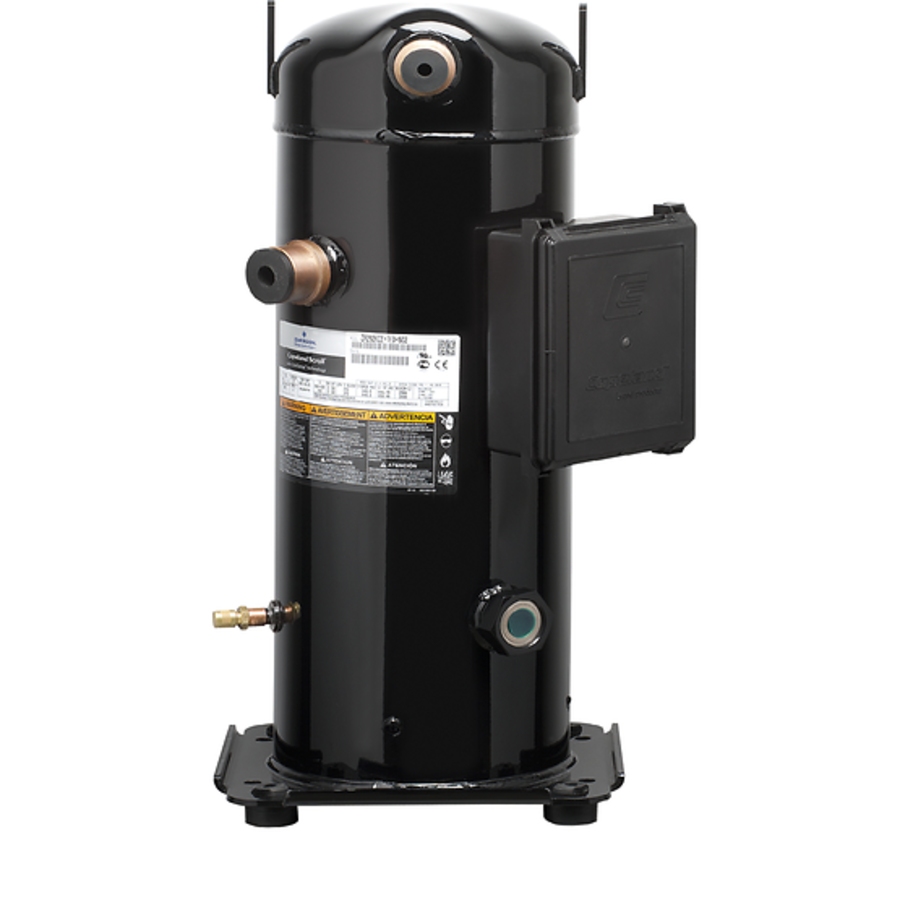

Emerson ZP24K5E-PFV-800 Compressor, 208-230/1 1/2 inches x 3/4 inches Scroll A/C Compliant

Product Description

The EMERSON ZP24K5E-PFV-800 is a compressor designed for HVAC and air conditioning applications. This scroll compressor operates at 208/230V AC 60 Hz 1-Phase and delivers 24000 BTU per hour. It features a bottom plate mounting type, a suction diameter of 3/4 inch, and includes a 42-inch molded plug wiring harness.

• Copeland Compressor
• 230V, 1-Phase
• 32,800 Btu

Product Highlights

The EMERSON ZP24K5E-PFV-800 scroll compressor is suitable for air conditioning units, offering efficient and reliable performance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZP24K5E-PFV-800

Technical Specifications

• Application: HVAC
• Compressor Type: Scroll
• Mounting Type: Bottom Plate
• Suction Diameter: 3/4 INCH
• Voltage Rating: 208/230 VOLT AC 60 HERTZ 1-PHASE
• Current Rating: 20 AMP (MCC), 64 AMP (LRA), 14.3 AMP (RLA)
• Capacity: 24000 BTU PER HOUR
• Run Capacitance: 40 MICROFARAD
• Refrigerant Type: R-410A
• Includes: 42 INCH MOLDED PLUG WIRING HARNESS, MOUNTING PART AND INSTALLATION INSTRUCTION
