Emerson ZP20K5E-PFV-800 Compressor, 208-230/1 1/2 inches x 3/4 inches Scroll A/C Compliant

Product Description

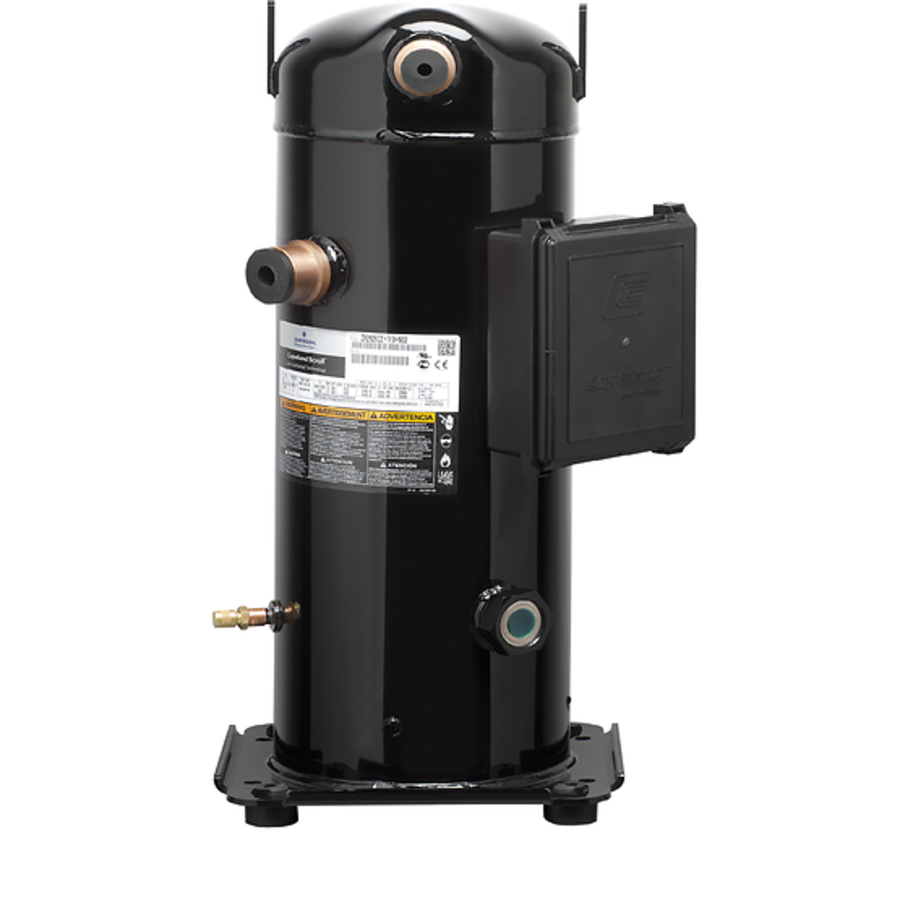

The EMERSON ZP20K5E-PFV-800 compressor is a scroll A/C compliant unit designed for HVAC applications. It operates at 208-230V and features a 1 1/2" x 3/4" scroll. This Copeland Scroll compressor is suitable for air conditioning applications, with a capacity of 20,000 BTU/HR. It uses R-410A refrigerant and has a cooling efficiency (EER) of 9.8.

• Copeland Scroll Compressor
• Capacity of 20,000 BTU/HR
• Operates on 208/230V, 1-Phase

Product Highlights

The EMERSON ZP20K5E-PFV-800 is ideal for air conditioning systems requiring a reliable and efficient scroll compressor.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZP20K5E-PFV-800

Technical Specifications

• Application: HVAC
• Refrigeration Type: R410A
• Cooling Efficiency (EER): 9.8
• Capacity Range (BTU): 20,000
• Voltage: 208/230 V
• Phase: 1
• Category: Compressors
• Brand: Copeland
• Compressor Type: Scroll
• Amperage Rating: 9.1 A
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Discharge Line Size: 1/2 in Stub
• Flow Rate: 295 to 336 lb/hr
• Power Rating: 2040 W, 1-2/3 hp
• Refrigerant Type: R-410A, HFC
• Series: ZP
• Sound Level: 66 to 71 dBA
• Speed Rating: 3500 rpm
• Suction Line Size: 3/4 in Stub
• Temperature Rating: 45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid
• Tonnage: 2 ton
• Voltage Rating: 208 to 230 VAC
