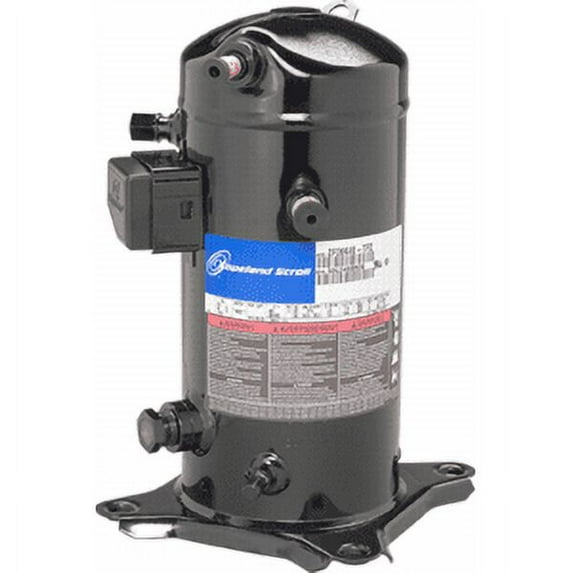

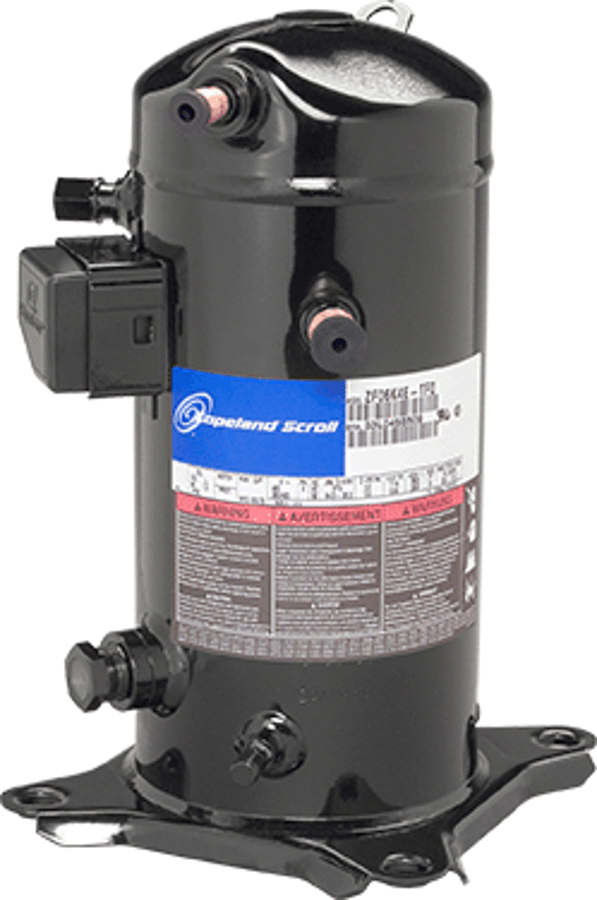

Emerson ZF11K4E-PFV-931 Compressor, 208-230/1 1/2 inches x 3/4 inches

Product Description

The EMERSON ZF11K4E-PFV-931 is a genuine OEM replacement part scroll compressor designed for refrigeration applications using R404A/R407C refrigerant. It features the newest compressor technology, offering efficiency and adaptability. It is suitable for applications from -40°F to +30°F when using R404A, R507, R134a, or R448A.

• Multi-Refrigerant Approved
• Superior Liquid Handling Capability
• Excellent Isentropic Efficiency

Product Highlights

This Copeland scroll compressor is compact, lightweight, durable, and approved for low-temperature refrigeration.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZF11K4E-PFV-931
• Country of Origin: US

Technical Specifications

• Application: Refrigeration
• Refrigerant: R22, R134a, R404A, R407A, R407F, R448A, R449A, R507
• URI Part Number: ZF11K4EPFV931
• Vendor Part Number: ZF11K4E-PFV-931
• Length (In.): 9.50
• Width (In.): 9.50
• Height (In.): 16.50
• Application by Refrigerant: Medium Temp - R22, Low Temp - R22, Medium Temp - R134a, Low Temp - R134a, Medium Temp - R404A, Low Temp - R404A, Medium Temp - R407A, Low Temp - R407A, Medium Temp - R407F, Low Temp - R407F, Medium Temp - R448A, Low Temp - R448A, Medium Temp - R449A, Low
• Capacity (BTUH): 11000
• Connection Discharge (In.): 1/2 S
• Connection Suction (In.): 3/4 S
• Connection Type: Sweat
• Country of Origin: US
• Horsepower: 3 1/2
• Mount (In.): 7.5 x 7.5
• Oil: Polyol Ester
• Phase: 1
• Rated Load Amps: 20.7
• Run Capacitor (Microfarad x Voltage): 60 x 370
• Voltage: 208-230
• Temperature Rating: UL Low | Low | UL Medium | Medium
• Discharge Line Size: 1/2 In.
• Suction Line Size: 3/4 in.
• Mounting Dimensions: 7.5 In. x 7.5 In.
• Brand: Copeland
