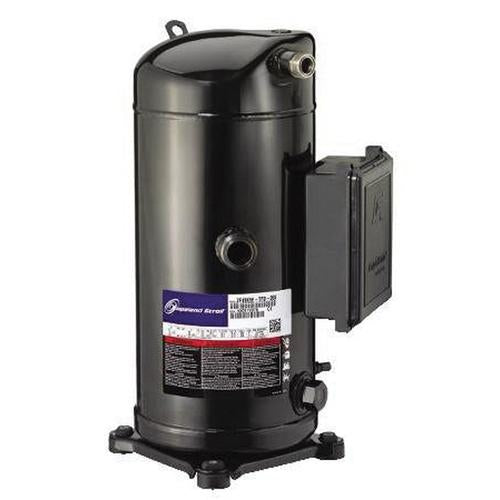

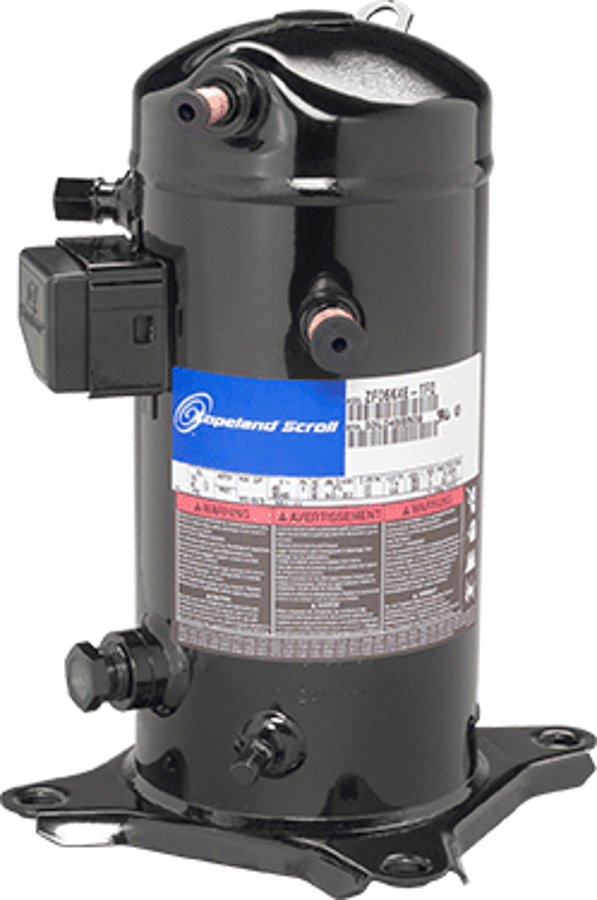

Emerson ZF06K4E-PFV-931 Compressor, 208-230/1 1/2 inches x 3/4 inches Scroll Compliant R404A/R407C

Product Description

The EMERSON ZF06K4E-PFV-931 compressor is a scroll compliant model designed for refrigeration applications using R404A/R407C refrigerant. It operates at 208-230 VAC and features a 1/2" discharge line size and 3/4" suction line size. This compressor is designed for superior efficiency and performance with liquid injection for low temperature applications.

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection
• Compressor family Series

Product Highlights

Designed for refrigeration, this scroll compressor offers efficient performance and is suitable for low-temperature applications with liquid injection.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZF06K4E-PFV-931
• Country of Origin: MEXICO

Technical Specifications

• Application: Refrigeration
• Refrigerant: R404A/R407C
• HP/Ton: 1.25
• Phase: 1
• Volts: 208/230
• Amperage Rating: 10.6 A
• BTU Rating: 6000 Btu/hr
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Discharge Line Size: 1/2 in ODF
• Power Rating: 2470 W, 2 hp
• Series: ZF
• Suction Line Size: 3/4 in ODF
• Voltage Rating: 208 - 230 VAC
• BtuH Capacity @ -10°F Evap.: 7870
• CCH: Yes
• Compressor: Scroll
• Overload: Internal
• Relay: B15-357
• Run Capacitor: E02-919
• Start Capacitor: B15-354
• Starting Torque: Normal
