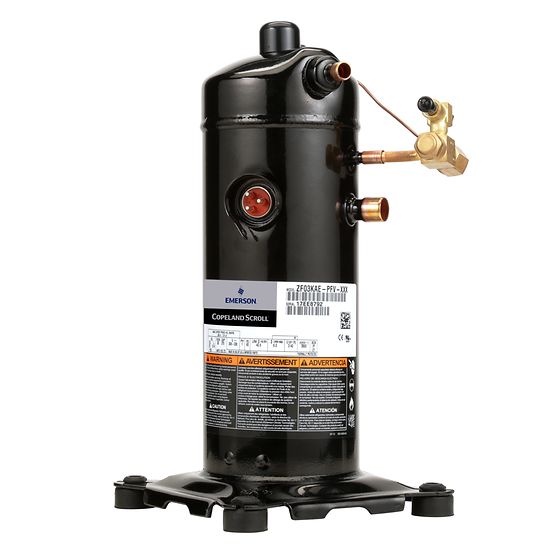

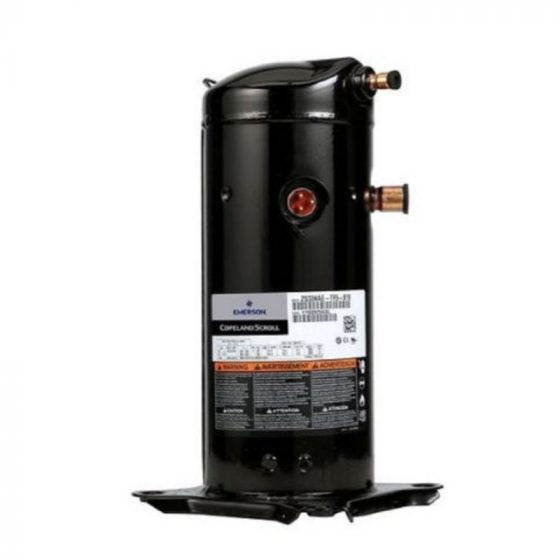

Emerson ZF03KAE-PFV-818 Compressor 208-230/1 Scroll 1/2 inches x 3/4 inches

Product Description

The EMERSON ZF03KAE-PFV-818 compressor is a 208-230/1 scroll compressor with 1/2" x 3/4" compliant connections. The Copeland Scroll ZF*KA compressor is an innovation in compliant scroll technology for refrigeration equipment. It is more efficient than standard reciprocating compressors and has fewer moving parts for increased reliability. It is suited for walk-in freezers and reach-ins.

• Smooth scroll movement leads to low sound and vibration
• 70% fewer moving parts than a reciprocating compressor means better reliability
• Axial & radial scroll compliance provides improved liquid handling capability

Product Highlights

This Copeland scroll compressor is designed for low to medium temperature refrigeration applications. It is multi-refrigerant capable and AWEF compliant.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZF03KAE-PFV-818
• Country of Origin: USA

Technical Specifications

• Application: Low Temp
• Vendor Part Number: ZF03KAE-PFV-818
• Capacity (BTUH): 3000
• Connection Discharge (In.): 1/2 S
• Connection Suction (In.): 3/4 S
• Displacement (CFH): 120.9
• Horsepower: 1
• Mount (In.): 7.5 x 7.5
• Oil: Polyol Ester
• Oil Recharge (Oz.): 19
• Phase: 1
• Rated Load Amps: 6.1
• Refrigerant: R404A, R407A, R407C, R407F, R448A, R449A, R507
• Voltage: 208-230
• Refrigerants: R-134a, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-507
• CFH: 120.9
• Capacity Range (BTU): 2496
• Cooling Efficiency (EER): 3.09
• Amps: 8.5
• BTU Output: 3180
• Brand: Copeland
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Country Of Origin: USA
• Crankcase Heater: 918-0052-00, 918-0052-01
• Cycle/Hertz: 60 Hz
• Discharge Connection: 1/2
• Evaporating Temperature: -40 F to 10 F (-40 C to -12.22 C)
• Features: Scroll Compressor, Displacement (in^3/Rev) 1.00, Displacement (ft^3/hr) 120.92, 1 HP, 5.7 MCC Amps, 3500 RPM.
• High Locked Rotor Amps: 42.3
• Locked Rotor Amps: 42.3
• Mass Flow: 22lbs./hr; 31 lbs./hr
• Maximum Amps: 8.5
• Maximum Fuse Size: 15
• Maximum Operating Current: 5.7
• Maximum Voltage: 240 VAC
• Minimum Circuit Amps: 8.5
• Mounting Dimensions: 7.50 x 7.50 x 16
• Oil Charge Initial: 25 oz.
• Oil Charge Recharge: 19 oz.
• Oil Type: Polyol Ester (POE)
• Overload Type: Internal
• Product Family: ZF
• Protection: Internal
• Return Gas Temperature: 65 F (18.33 C)
• Suction Line Fitting: Sweat or Braze
• Suction Line Size (OD): 3/4
• UL Listed: No
