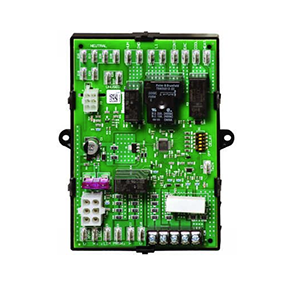

Emerson X8609 Fan Timer Control Replaces ST9120U1011

Product Description

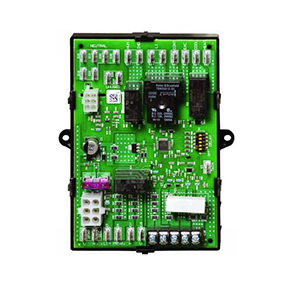

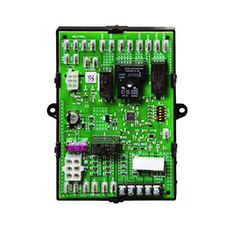

The EMERSON X8609 is a fan timer control board designed for use in residential forced-air heating and cooling systems. It manages the timing and sequencing of the indoor blower fan relative to system calls for heat or cool, ensuring proper air circulation and preventing short cycling of the fan motor. Licensed HVAC technicians install this control as an OEM-style replacement when the original board has failed, exhibits erratic fan behavior, or shows visible damage. The X8609 is a direct replacement for the Honeywell ST9120U1011 fan timer control.

This control board is suited for residential forced-air gas furnace applications where fan-on and fan-off timing must be reliably managed. It is typically found in single-stage heating systems that rely on a low-voltage control circuit to operate the blower. The X8609 is specified as a replacement for equipment originally equipped with the ST9120U1011 fan timer, making it a practical field-service part for HVAC contractors performing warranty and non-warranty repairs.

Key Features

• Direct replacement for the ST9120U1011 fan timer control
• Controls blower fan on and off timing sequences in forced-air systems
• Designed for residential gas furnace low-voltage control circuits
• OEM-style form and function for straightforward field replacement

Compatibility

The X8609 is specified as a direct replacement for the Honeywell ST9120U1011 fan timer control. No additional compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the furnace at the disconnect switch and breaker before removing the existing control board. Handle the board carefully to avoid static discharge damage to onboard components. Follow all applicable local codes and the equipment manufacturer's wiring diagram when making low-voltage connections.

Technical Specifications

• Function: Fan Timer Control
• Replaces: ST9120U1011

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: X8609
