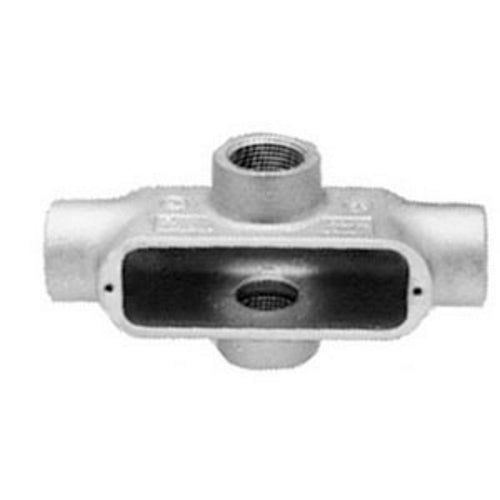

Emerson X50-M Appleton UNILETS Conduit Outlet Body Type X 1/2 in Hub Replacement MPN

Product Description

The Emerson X50-M is an Appleton UNILETS Conduit Outlet Body designed for reliable conduit connections. This unit has a half inch hub and a capacity of six cubic inches. It features malleable iron construction and a triple-coated finish for enhanced durability.

• Smooth, rounded integral bushing protects conductor insulation
• Tapered FNPT connection for secure joints
• Suitable for surface mounting

Product Highlights

This conduit outlet body allows for effective changing of conduit direction while providing easy access for splicing and maintenance.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138174555

Technical Specifications

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Connection Type: Tapered FNPT
• Dimensions: 1.75 in H x 2.69 in W
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Hub Size: 1/2 in
• Manufacturer Part Number: X50-M
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 4
• Standards/Approvals: UL 514B File No. E2527|CSA C22.2 No. 18.3/065183
• Type: Type X
