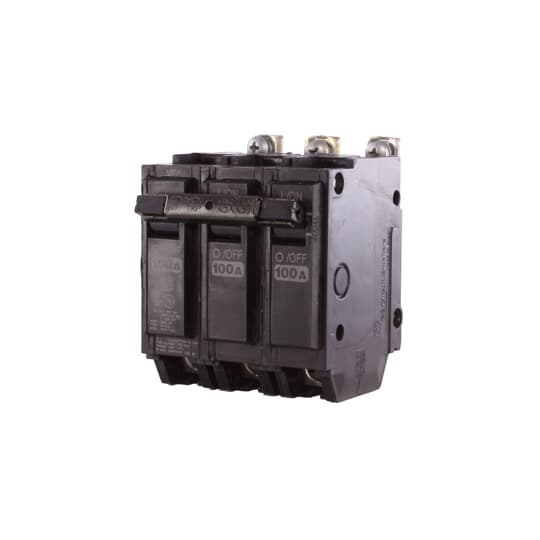

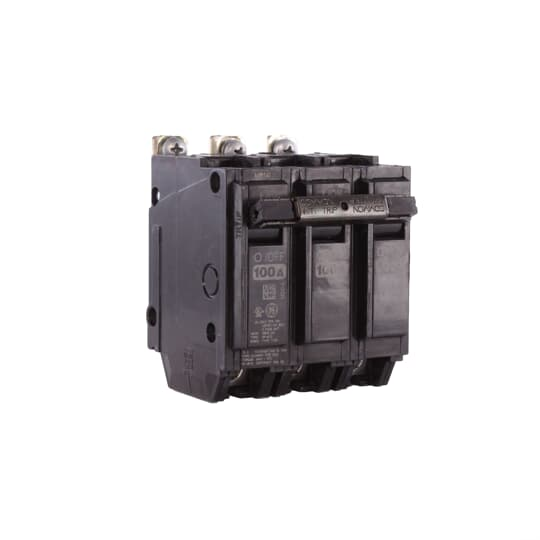

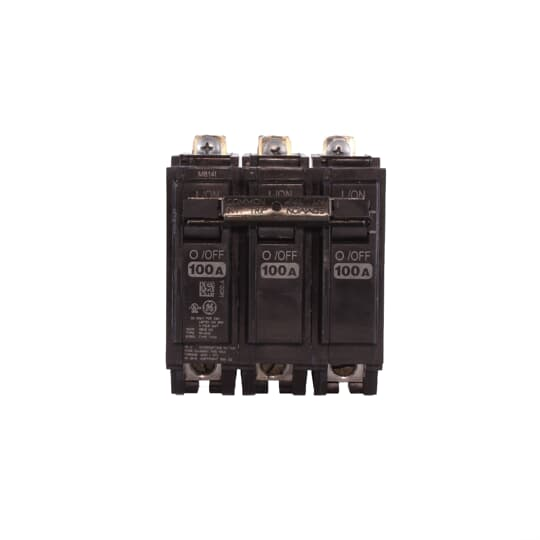

EMERSON THQB32100 THQB MCB 100A 10kA 3P

Product Description

The EMERSON THQB32100 is a thermal-magnetic circuit breaker designed for both residential and commercial applications. This three-pole breaker has a rating of 100A and operates at 240V. It features a one-inch width per pole, making it compact and easy to install. Key functionalities include Quick-make and Quick-break mechanisms, common trip bars, and clear trip indication. The QB series breakers are specifically designed to bolt onto bus connections of load centers and lighting panels.

• Amperage rating of 100A
• Voltage compatibility of 120/240 VAC
• 10 kA interrupt rating

Product Highlights

This circuit breaker is ideal for electrical distribution and control, suitable for various applications.

Product Information

Standard Information

• Brand: EMERSON
• MPN: THQB32100

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Poles: 3
• Frame: THQB
• Trip Type: LI/Non-Interchangeable Thermal Magnetic
• Mounting Type: Bolted-On
• Wire Size: 6 to 1/0 AWG
• Phase: 1
• Dimensions: 2-3/8 in L x 3 in W x 3-9/32 in H
• Temperature Rating: 60 to 75 deg C
