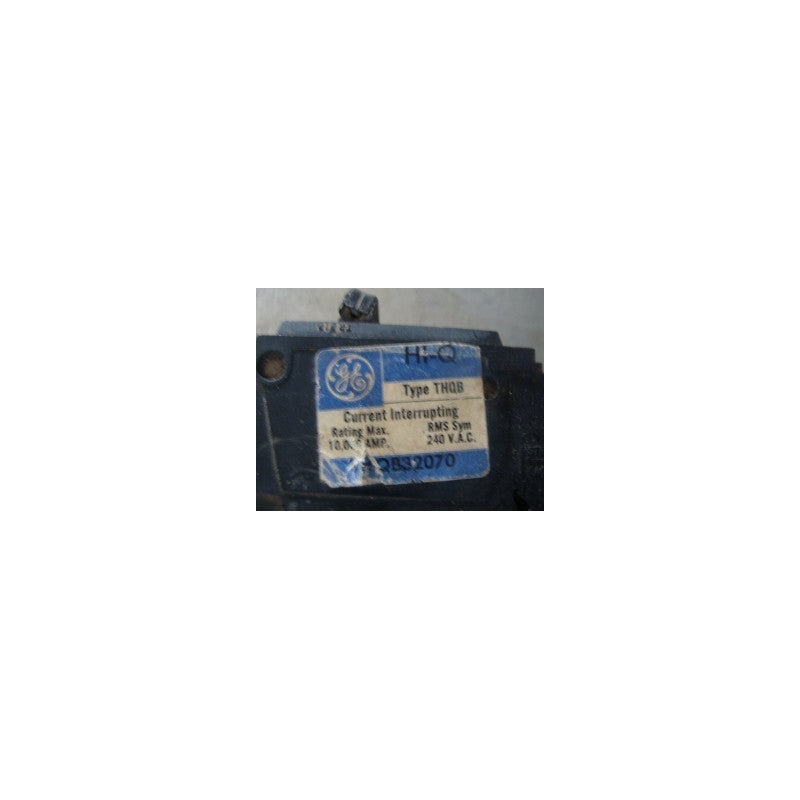

EMERSON THQB32070 - 3-Pole Circuit Breaker - 70 Amp - 240V

Product Description

The EMERSON THQB32070 is a 3-pole circuit breaker designed for residential and commercial settings. It offers protection against overloads and short circuits with its thermal-magnetic trip mechanism. The device operates at a voltage of 240V with an interrupting rating of 10 kAIC. It features a current rating of 70 amps and a compact design that eases installation. This circuit breaker accepts wire sizes from six to one-aught American Wire Gauge (AWG) for convenient setups.

• Rated for 70 amps and 240V for effective electrical system protection.
• Utilizes thermal-magnetic trip for safety against overload and short circuits.
• Engineered for bolt-on installation, compatible with wire sizes from six to one-aught AWG.

Product Highlights

The EMERSON THQB32070 provides reliable circuit protection in various applications.

Product Information

Standard Information

• Brand: EMERSON
• Type: Circuit Breaker

Technical Specifications

• Poles: 3
• Amperage: 70 amp
• Voltage Rating: 240V
• Interrupting Rating: 10 kAIC
• Series: THQB
• Trip Type: Thermal-Magnetic
• Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG
• Mounting Type: Bolted-On
• Temperature Rating: 40 deg C
• Dimensions: 3.28 inches H x 3 inches W x 2.38 inches D
