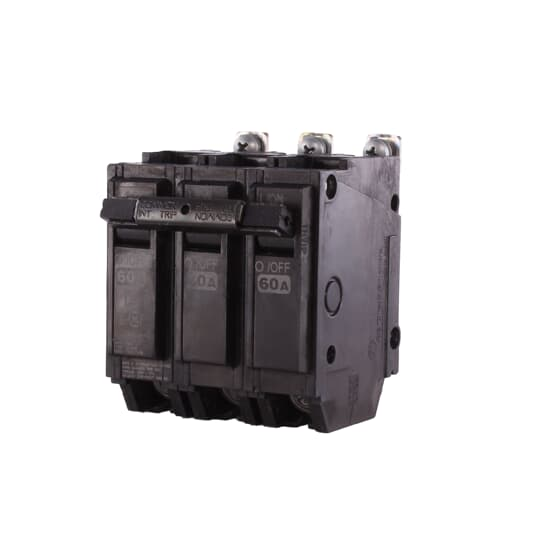

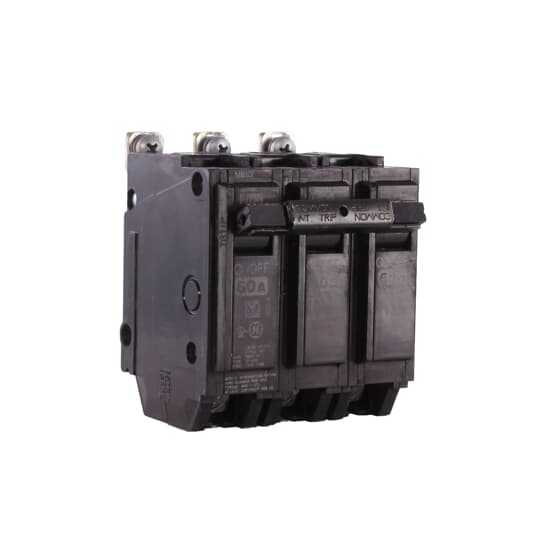

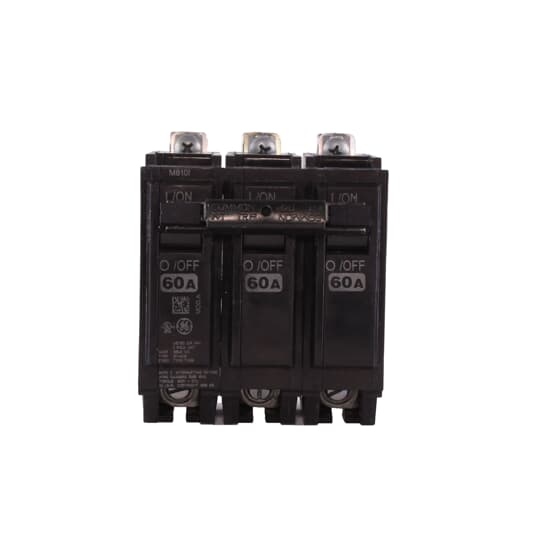

EMERSON THQB32060 Circuit Breaker 60 Amp 240 VAC Bolt-On Replacement MPN

Product Description

The EMERSON THQB32060 is a three-pole, 60 Amp, 240 VAC bolt-on circuit breaker designed for reliable protection in both residential and commercial settings. This circuit breaker from the Q-Line series uses thermal-magnetic technology. It is commonly installed directly on the bus connections of load centers and lighting panels. The THQB32060 features quick-make and quick-break mechanisms along with common trip bars to ensure efficient performance.

• Three-pole circuit breaker rated at 60 Amps
• Designed for 240 VAC applications
• UL listed and CSA approved for safety

Product Highlights

This breaker is perfect for use in various electrical systems, ensuring secure circuit protection while being compatible with multiple applications.

Product Information

Standard Information

• Brand: EMERSON
• MPN: THQB32060

Technical Specifications

• Amperage: 60 A
• Poles: 3
• Voltage: 120/240 VAC
• Interrupting Rating: 10 kAIC
• Connection: Bolt-On
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Trip Function: LI
• Suitable for Reverse Feed: Yes
• Special Markings: HACR
