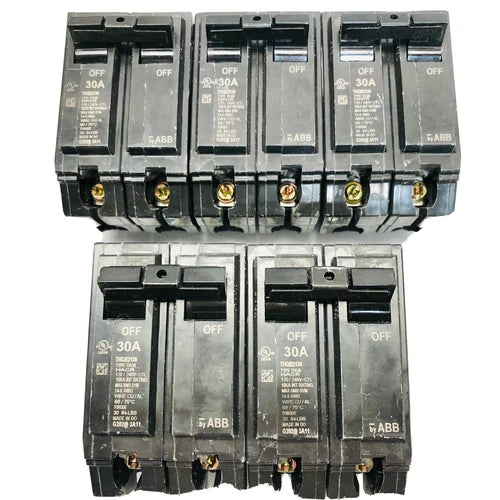

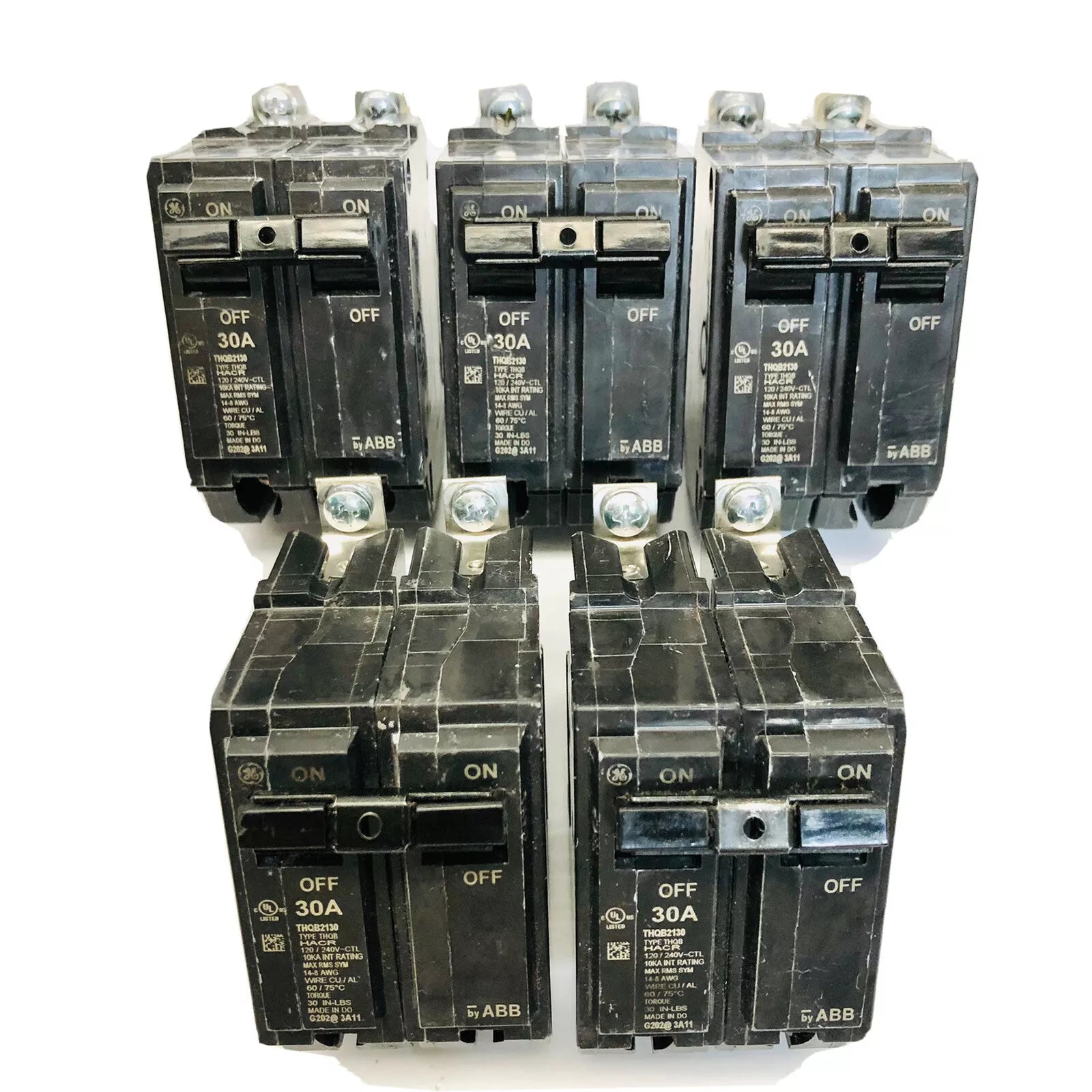

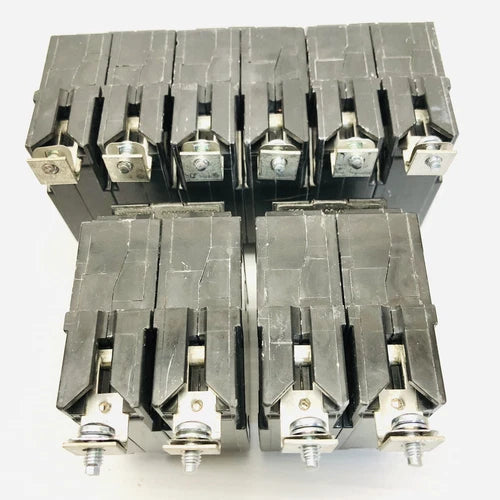

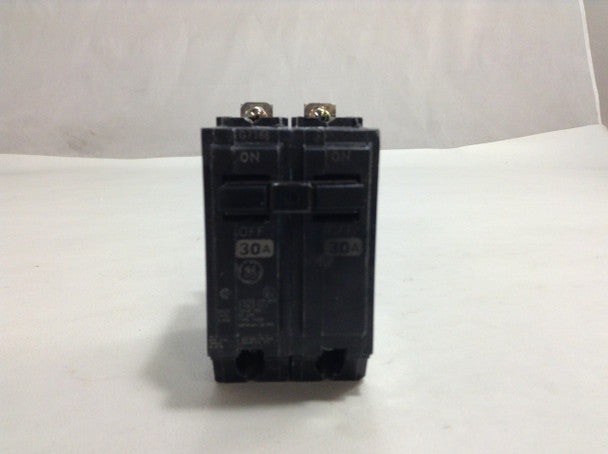

EMERSON THQB2130 Circuit Breaker - 30 Amp, 2 Pole, 120/240V

Product Description

The EMERSON THQB2130 is a molded case circuit breaker suitable for load centers and lighting panels. This device is designed to protect electrical systems from overloads and short circuits in both residential and commercial settings. It operates at 30 amperes and is rated for a voltage of 120/240 VAC.

• Two-pole design for better electrical distribution
• Simple installation with bolt-on mounting and box lug connections
• UL Listed and HACR Rated for dependable safety

Product Highlights

This circuit breaker is essential for reliable electrical systems, providing safety and performance.

Product Information

Standard Information

• Brand: EMERSON
• MPN: THQB2130

Technical Specifications

• Amperage: 30 A
• Voltage: 120/240 VAC
• Poles: 2
• Type: Standard, Internal Common Trip Bar
• Series: THQB
• Interrupt Rating: 10 kA at 120/240 VAC
• Mounting Type: Bolt-On
• Conductor Size: 14 - 8 kcmil Copper, 12 - 8 kcmil Aluminum
• Frame: Q-Line
• Standards: UL Listed, HACR Rated, GSA Compliant
• Dimensions: 3.28 inches L x 2 inches W x 2.38 inches D
