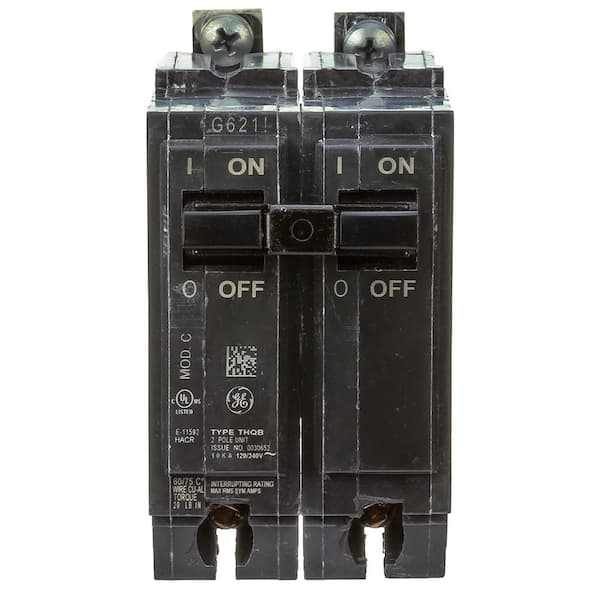

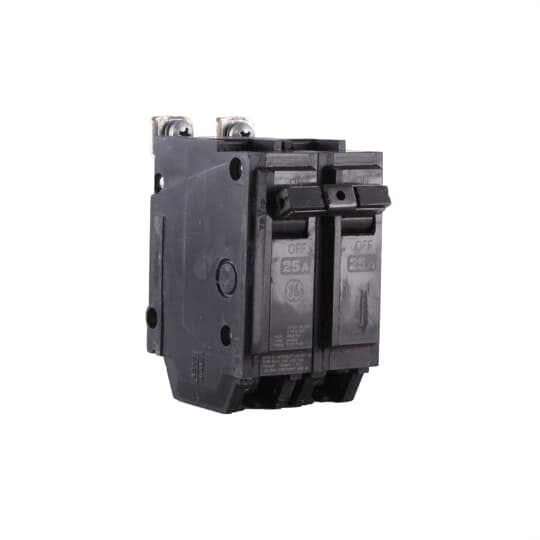

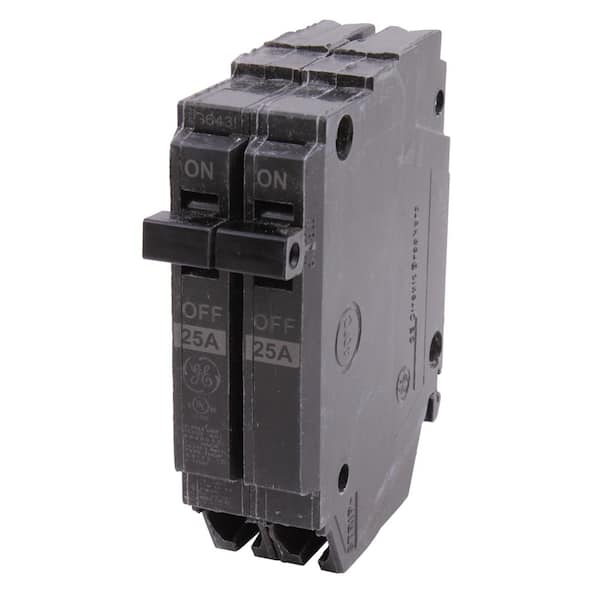

Emerson THQB2125 2 Pole Bolt-On Circuit Breaker 25A 10kA

Product Description

The EMERSON THQB2125 is a 2-pole circuit breaker designed for electrical protection in residential and commercial settings. It has a bolt-on connection type to easily attach to the bus connections of load centers and lighting panels. Rated for 25 Amps and capable of handling 120/240VAC, this circuit breaker offers reliable thermal-magnetic trip protection.

• 2-pole, 25 Amp rated circuit breaker

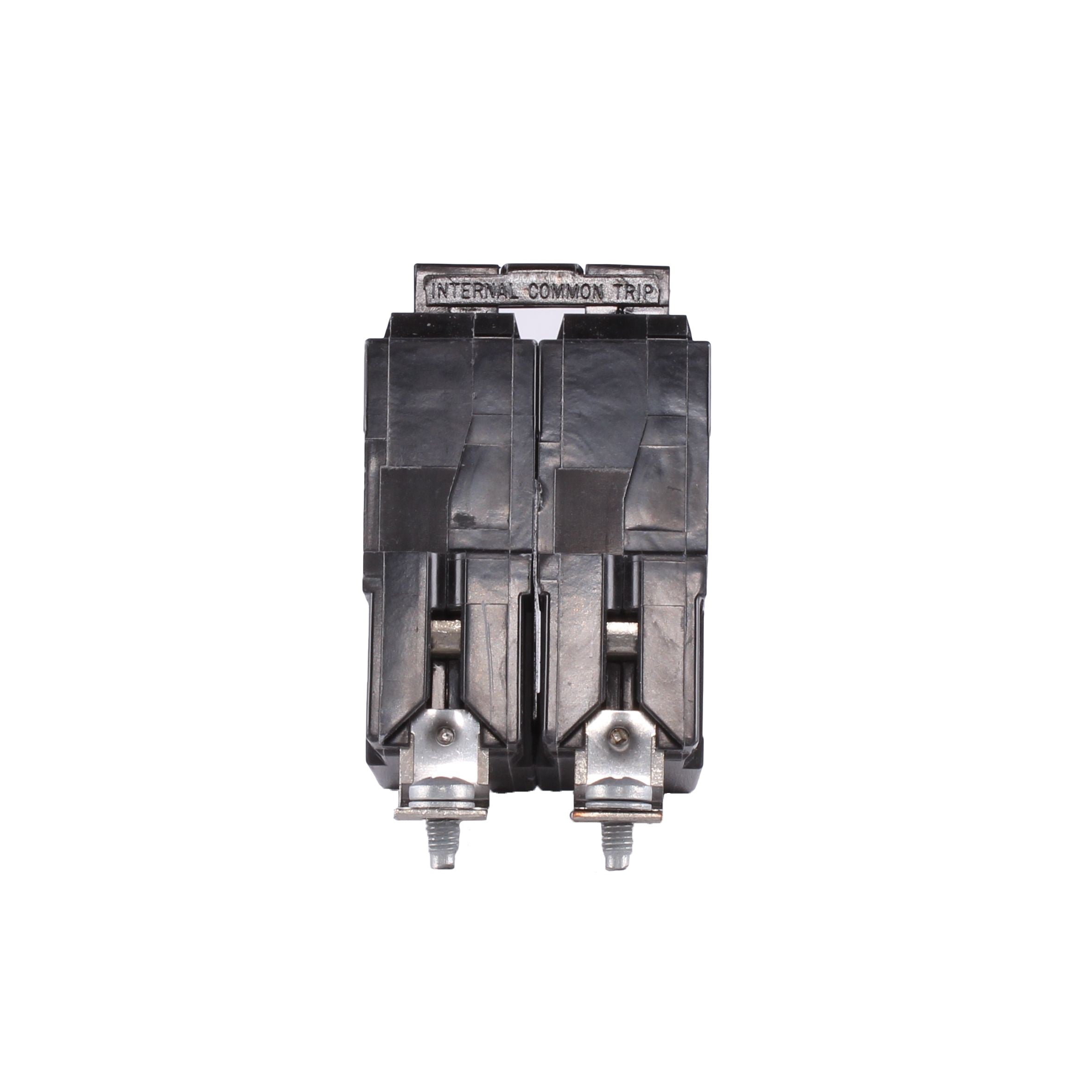

• Bolt-on installation for secure connection
• Thermal-magnetic trip mechanism for safety

Product Highlights

Reliable circuit protection with easy installation and clear trip indication for safety.

Product Information

Standard Information

• Brand: EMERSON
• Series: THQB
• MPN: THQB2125

Technical Specifications

• Amperage: 25 A
• Voltage: 120/240 VAC
• Poles: 2
• Phase: 1
• Mounting Type: Bolt-On
• Interrupting Rating: 10 kA at 120/240VAC
• Trip Type: Thermal Magnetic/Long Time/Instantaneous
• Wire Size: 14 to 8 AWG Copper, 12 to 8 AWG Aluminum
• Dimensions: 3.28 inches H x 2 inches W x 2.38 inches D
