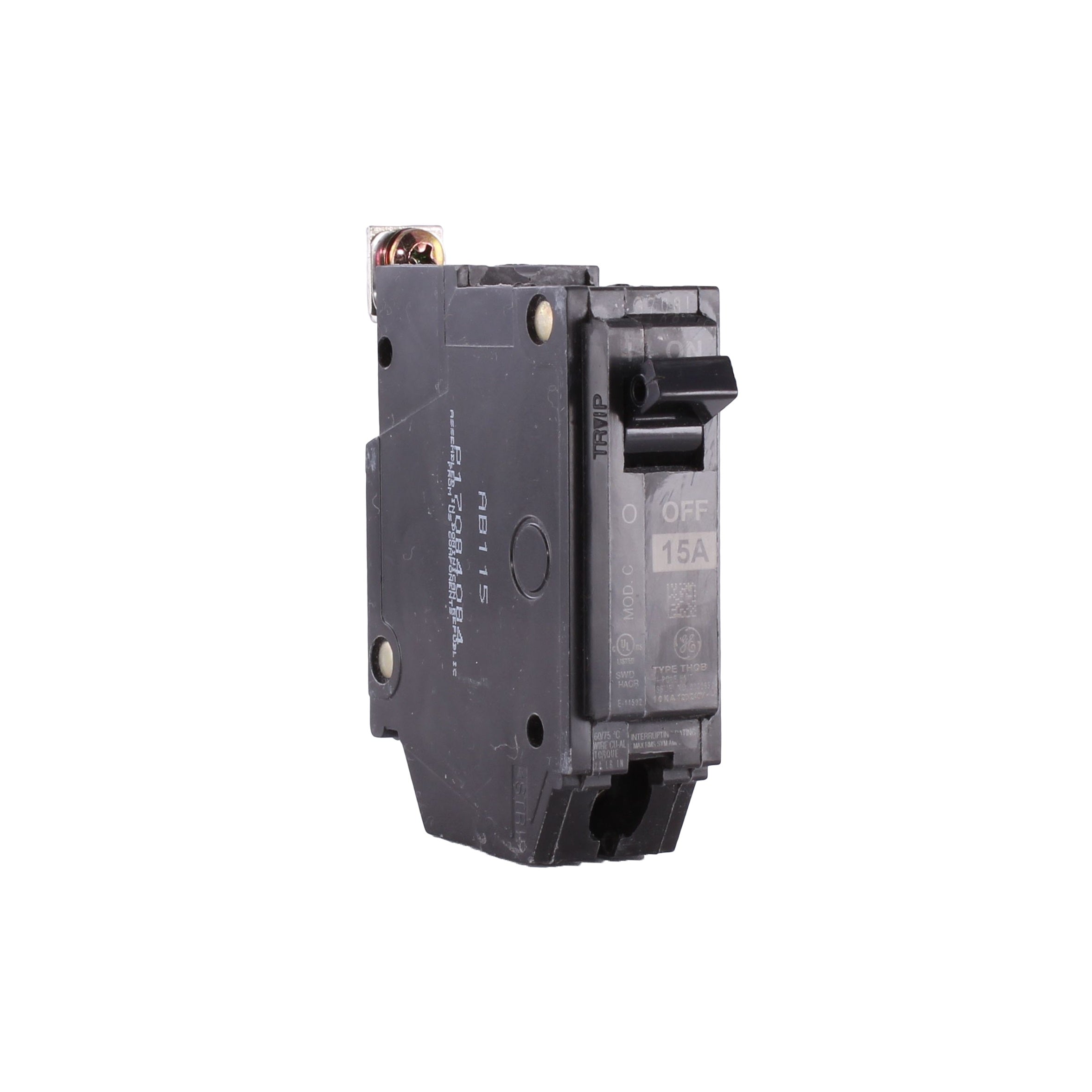

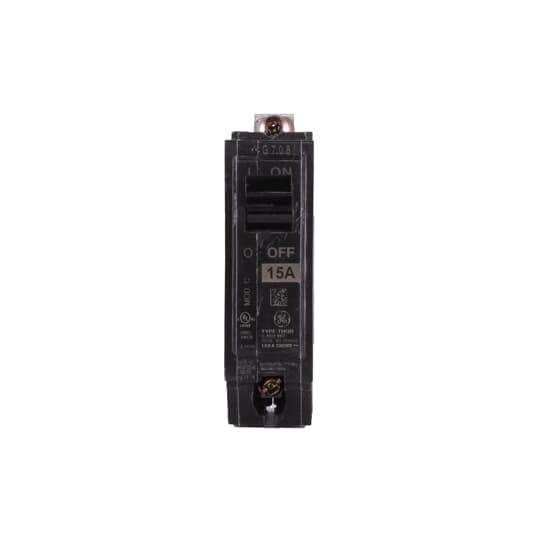

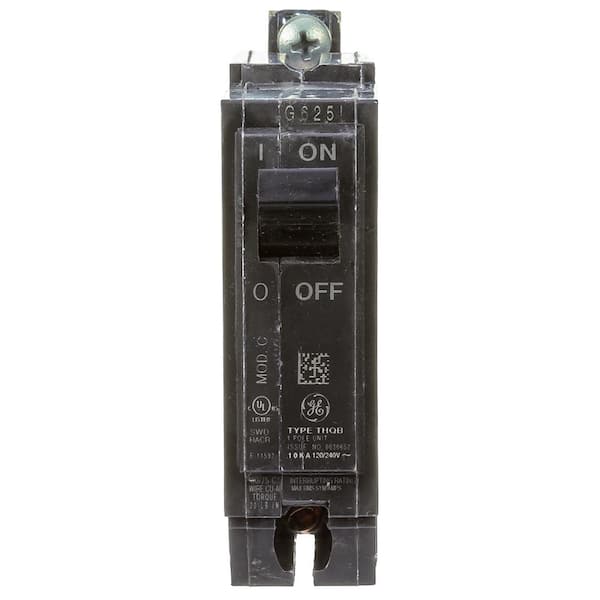

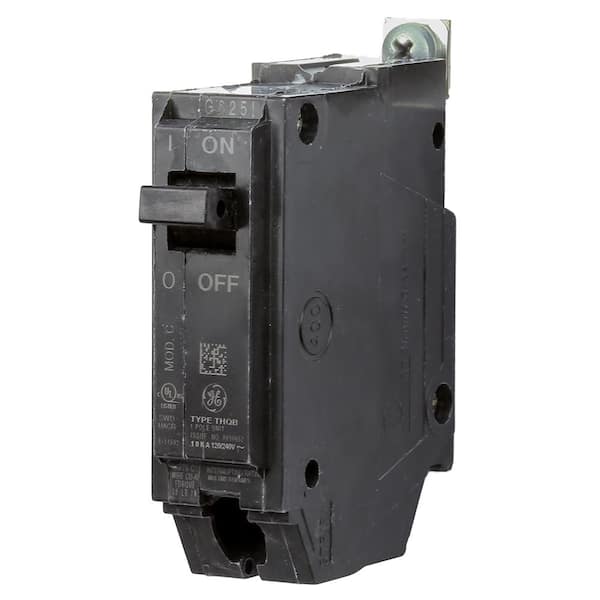

Emerson THQB1115 GE EMERSON Miniature Circuit Breaker 15A 10kA 1P

Product Description

The EMERSON GE THQB1115 is a Q-Line miniature circuit breaker designed for residential and commercial applications. This thermal-magnetic device is compact, measuring one inch wide per pole. It securely attaches to bus connections in load centers and lighting panels.

• Compact design optimizes panel space.
• Bolt-on connectors ensure secure attachment.
• Suitable for residential and commercial electrical systems.

Product Highlights

The THQB1115 features a Quick-make/Quick-break mechanism and a common trip bar for enhanced safety and reliability.

Product Information

Standard Information

• Brand: EMERSON Electric Co.
• Catalog Number: THQB1115

Technical Specifications

• Poles: 1
• Amperage: 15 A
• Voltage: 120/240 VAC
• Interrupting Rating: 10 kAIC
• Connection Type: Bolt-On
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Trip Function: LI (Long Time and Instantaneous)
• Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
• Suitable for Reverse Feed: Yes
• Approval: CSA Approved and UL Listed
