Emerson TC-601 APP 1/2 DC EMT COMP CONN

Product Description

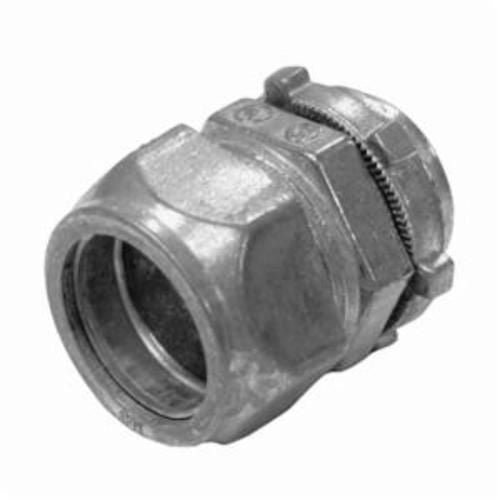

The Emerson TC-601 APP 1/2 DC EMT COMP CONN is a gland compression connector designed for use with EMT conduit. This non-insulated straight connector is part of the TC-600 series. Constructed with die cast zinc, it provides a reliable metallic finish. The connector measures one point two six inches in length and has a diameter of zero point nine eight inches.

• Designed for securing and terminating steel EMT to knockouts.
• Concrete tight for use in damp and dry locations.
• Meets various industry standards for reliable performance.

Product Highlights

This connector is essential for applications requiring secure electrical connections in various environments, including wet and dry conditions.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785510601

Technical Specifications

• Application: For securing and terminating steel EMT to knockouts in concrete tight box or dry/damp locations.
• Color: Metallic
• Dimensions: 1.26 in L
• Finish: Natural
• Manufacturer Part Number: TC-601
• Material: Die Cast Zinc
• Series: TC-600
• Standards/Approvals: CSA 208044, CSA C22.2 No. 18.3, NEMA FB-1, UL 514B File No. E35001
• Suitable For Use With: EMT Conduit
• Trade Size: 1/2 in
• Type: Non-Insulated Straight
