Emerson TC-503 APP 1-IN DC EMT S-SCR CONN

Product Description

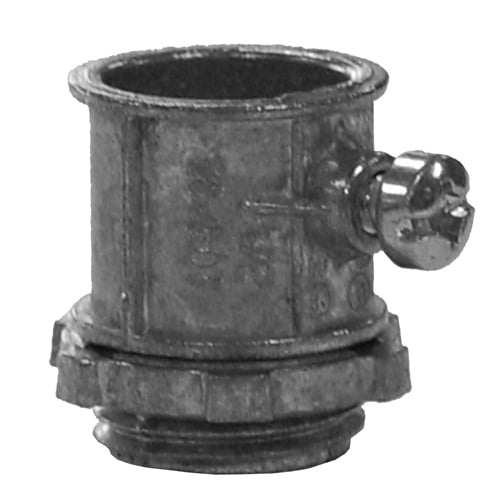

The Emerson TC-503 is a set screw connector for EMT conduit. This non-insulated straight connector is part of the TC-500 series. It is made of die cast zinc and is designed for use in secure connections. It measures one inch in trade size and has a length of one point fifty-six inches.

• Applications in concrete tight or dry locations
• Male hub NPS thread connection
• Pre-set and pre-staked set screws

Product Highlights

The TC-503 provides reliable connections for EMT conduit in various environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: TC-503

Technical Specifications

• Type: Non-Insulated Straight
• Application: For securing and terminating steel EMT to knockouts in concrete tight box or dry locations
• Material: Die Cast Zinc
• Trade Size: 1 in
• Dimensions: 1.56 in L
• Color: Metallic
• Finish: Natural
• Series: TC-500
• Standards/Approvals: CSA 208044|CSA C22.2 No. 18.3|NEMA FB-1|UL 514B File No. E35001
• Suitable For Use With: EMT Conduit
