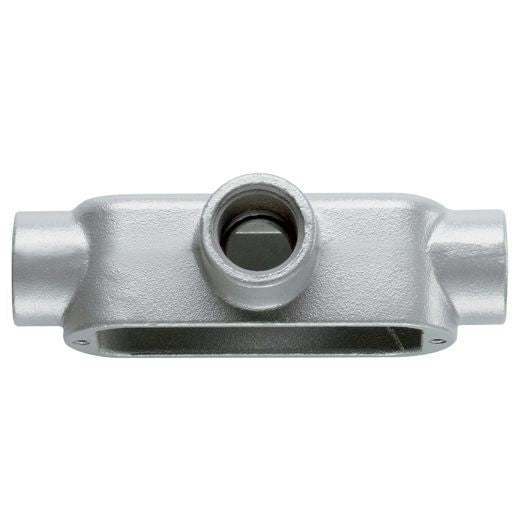

Emerson T-75 GEDNEY 3/4IN IRON TYPE T CONDUIT BODY T-75

Product Description

The Emerson T-75 conduit body is designed for Rigid and IMC conduit applications. This product features malleable iron construction with aluminum enamel and zinc electroplating. It includes three hubs and provides a total internal volume of seven cubic inches. The conduit body measures six and one-eighth inches in length by one and five-eighths inches in height.

• Malleable iron suitable for use in concrete
• NEMA FB-1 enclosure for added durability
• Raintight when used with gasketed covers

Product Highlights

This conduit outlet body allows for easy changes in direction and connections for conduit runs. It allows for access to conductors for maintenance and splicing.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312651720

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Connection Type: Tapered FNPT
• Dimensions: 6-1/8 in L x 1-5/8 in H
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 3
• Standards/Approvals: ARRA Compliant, UL 514A File No. E18095, C22.2 No. 18/009795 Certified, Federal Specification A-A-50563, Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
• Type: Type T
