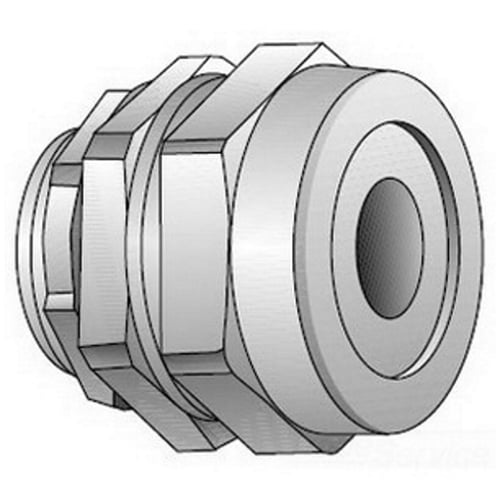

Emerson SR-759 GEDNEY 3/4 IN STR STRAIN RLF CONN

Product Description

The Emerson SR-759 is a strain relief straight cord connector designed for use with cables. This product is suitable for securing and sealing cords or cables entering enclosures or raceways. It is part of the SR Series and features a 3/4 inch trade size with cable openings measuring between 0.8 to 0.9 inches. The connector utilizes a MNPT connection and is constructed from malleable iron with a zinc plated finish for enhanced durability.

• UL listed for NEMA 4 and 6 when properly installed
• Designed for use with 3/4 inch trade size cables
• Temperature rated up to 90 degrees Celsius

Product Highlights

This strain relief connector helps prevent cable wear and tear from mechanical stress and environmental factors.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: SR-759

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.8 to 0.9 in
• Connection Type: MNPT
• Dimensions: 0.63 in Dia x 1.25 in L
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795, UL File No. E11857
• Temperature Rating: 90 deg C
• Trade Size: 3/4 in
• Type: Strain Relief
