Emerson SR-757 OZ SR757 CORD CONN Power (3/4 in) Replacement MPN

Product Description

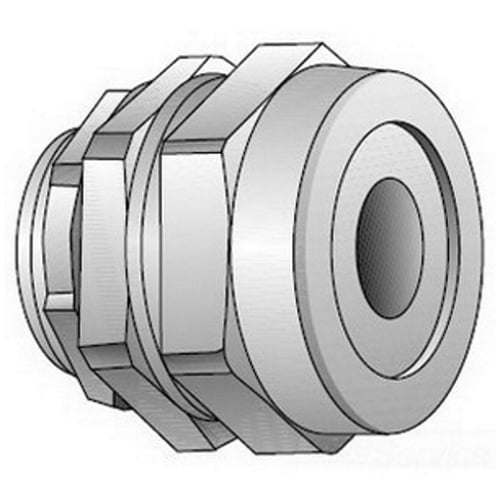

Emerson SR-757 is a strain relief straight cord connector designed for securing and sealing cords entering enclosures or raceways. This connector is part of the SR Series and features a trade size of three-fourths inch with cable openings ranging from six-tenths to seven-tenths inch. It is made from malleable iron and has a zinc plated finish for durability and resistance to corrosion. The connector operates up to a temperature rating of ninety degrees Celsius.

• UL listed NEMA 4 and 6 when installed in a NPT threaded entry or UL listed conduit hub.
• Dimensions of 1.38 inches in diameter and 1.19 inches in length.
• Features MNPT connection type for easy installation.

Product Highlights

This connector ensures secure and reliable connections for various electrical applications.

Product Information

Standard Information

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Trade Size: 3/4 in

Technical Specifications

• Cable Openings: 0.6 to 0.7 in
• Connection Type: MNPT
• Dimensions: 1.38 in Dia x 1.19 in L
• Finish: Zinc Plated
• Manufacturer Part Number: SR-757
• Material: Malleable Iron
• Series: SR Series
• Temperature Rating: 90 deg C
