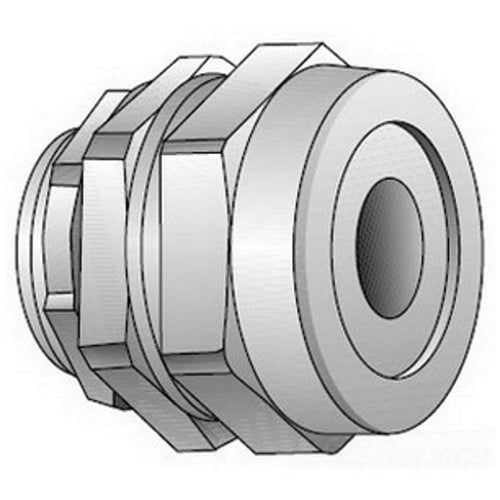

Emerson SR-756 SR756 OZ CORD CONN 3/4 .5-.6

Product Description

The Emerson SR-756 is a straight cord connector designed for strain relief. This connector features a trade size of three-fourths inches and accommodates cable openings ranging from zero point five to zero point six inches. It is constructed from malleable iron with a zinc-plated finish for durability. The connector is rated for ninety degrees Celsius and measures one point thirty-eight inches in diameter and one point nineteen inches in length.

• UL listed for NEMA 4 and 6 when properly installed.
• Designed for securing and sealing cords or cables entering enclosures or raceways.
• Constructed from durable materials for long-lasting performance.

Product Highlights

The SR-756 connector is part of the SR Series and is essential for use in various electrical installations, ensuring secure connections in hazardous locations.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Trade Size: 3/4 in

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.5 to 0.6 in
• Connection Type: MNPT
• Dimensions: 1.38 in Dia x 1.19 in L
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
• Temperature Rating: 90 deg C
• Type: Strain Relief
