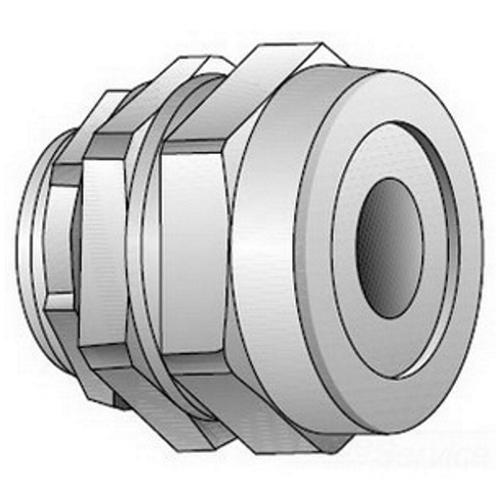

Emerson SR-755 Strain Relief Straight Cord Connector, 3/4 in Trade

Product Description

Emerson produces the SR-755 strain relief straight cord connector. This connector fits a three-quarter inch trade size and accommodates cables with openings from zero point four to zero point five inches. It connects using MNPT threads and is made from malleable iron with a zinc plated finish.

• Meets UL listed NEMA 4 and 6 standards when installed correctly.
• Used for securing and sealing cables in enclosures or raceways.
• Rated for a maximum temperature of ninety degrees Celsius.

Product Highlights

The SR-755 connector is ideal for protecting electrical connections from environmental hazards.

Product Information

Standard Information

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Trade Size: 3/4 in

Technical Specifications

• Dimensions: 1.38 in Dia x 1.19 in L
• Cable Openings: 0.4 to 0.5 in
• Connection Type: MNPT
• Material: Malleable Iron
• Finish: Zinc Plated
• Temperature Rating: 90 deg C
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
