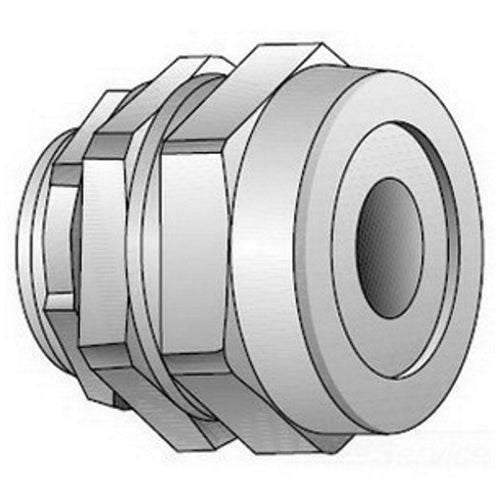

Emerson SR-754 Strain Relief Straight Cord Connector, 3/4 in

Product Description

The Emerson SR-754 is a strain relief straight cord connector designed for securing and sealing cord or cable entries into enclosures or raceways. Made from malleable iron and zinc plated, it offers durability and corrosion resistance. This strain relief connector supports cable openings from 0.3 to 0.4 inches, providing a secure fit for various cable sizes.

• Fits cables with diameters of zero point three to zero point four inches
• Suitable for NPT connection to ensure a tight seal
• Rated for use at temperatures up to ninety degrees Celsius

Product Highlights

The SR-754 connector complies with NEMA standards for water and dust resistance, making it ideal for outdoor and industrial environments.

Product Information

Standard Information

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Connection Type: MNPT

Technical Specifications

• Dimensions: 1.38 in diameter by 1.19 in length
• Trade Size: 3/4 in
• Material: Malleable Iron
• Finish: Zinc Plated
• Temperature Rating: 90 deg C
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
