Product Description

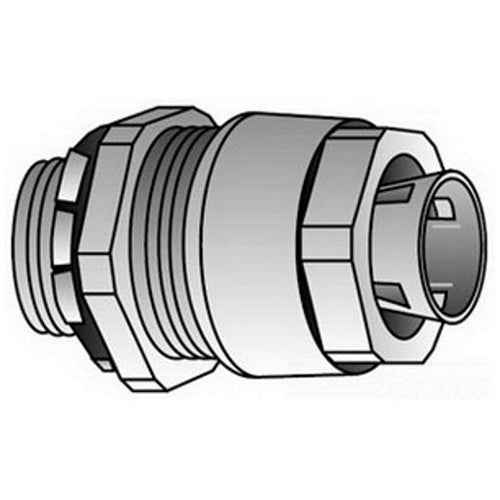

Emerson SR-75-750 is a strain relief connector designed for securing and sealing cords or cables entering enclosures or raceways. This connector features a malleable iron construction with a zinc plated finish for added durability. It accommodates cable openings from five eighths to three fourths inches and is part of the Grip-Tite series.
- Made of malleable iron with a zinc plated finish
- Suitable for liquid tight, oil tight, or rain tight applications
- Meets NEMA 4, 6, and 12 standards when properly installed
Product Highlights
This connector is easy to install without disassembling the fitting, allowing for close spacing between connectors due to its slim profile.
Product Information
Standard Information
-
Manufacturer: Emerson Electric
-
UPC: 78312650663
Technical Specifications
-
Type: Strain Relief
-
Application: For securing and sealing cords or cables entering enclosures or raceways
-
Cable Openings: 5/8 to 3/4 in
-
Connection Type: Tapered MNPT
-
Material: Malleable Iron
-
Finish: Zinc Plated
-
Temperature Rating: 90 deg C
-
Dimensions: 1-1/2 in Dia x 1-1/4 in L
-
Trade Size: 3/4 in
-
Standards/Approvals: ARRA Compliant | RoHS Compliant | CSA 009795 C22.2 No. 18 | Federal Specification W-F-406E | UL File No. E11857 | UL 514B
