Emerson SR-507 OZ SR507 .600-.700 CORD CONN 1/2

Product Description

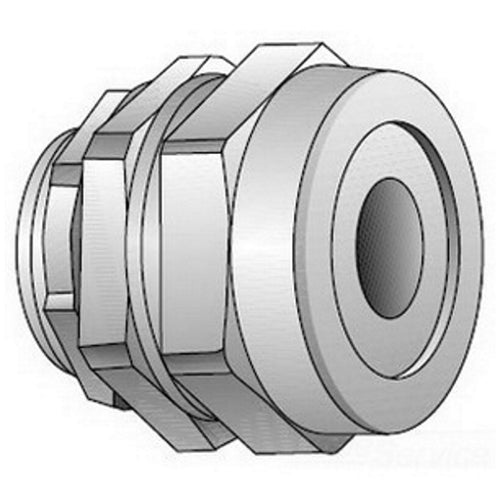

The Emerson SR-507 is a straight cord connector designed for securing and sealing cords or cables. It features a strain relief design and has a trade size of one half inch. The cable openings accommodate sizes from zero point six to zero point seven inches. This product is made of malleable iron and has a zinc plated finish, offering durability and resistance to corrosion.

• UL listed for NEMA 4 and 6.
• MNPT connection for secure attachment.
• Temperature rated at ninety degrees Celsius.

Product Highlights

This connector is ideal for use in various electrical applications, particularly where cords enter enclosures or raceways.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Series: SR Series

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.6 to 0.7 in
• Connection Type: MNPT
• Dimensions: 1.38 in Dia x 1.19 in L
• Finish: Zinc Plated
• Manufacturer Part Number: SR-507
• Material: Malleable Iron
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795, UL File No. E11857
• Temperature Rating: 90 deg C
• Trade Size: 1/2 in
• Type: Strain Relief
