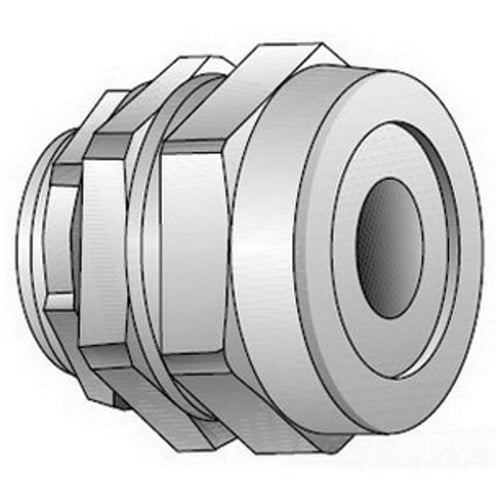

Emerson SR-506 Strain Relief Straight Cord Connector 1/2 in SR-506

Product Description

The Emerson SR-506 is a strain relief straight cord connector designed for use with cables entering enclosures or raceways. This connector supports cable openings from half an inch to six tenths of an inch. Made from malleable iron with a zinc plated finish, it is suitable for various applications in electrical installations.

• UL listed for NEMA 4 and 6 installations
• Temperature rating of ninety degrees Celsius
• Meets multiple standards including ARRA and RoHS compliance

Product Highlights

The SR-506 is easy to install and provides a secure connection for electrical cords in various environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Trade Size: 1/2 in

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.5 to 0.6 in
• Connection Type: MNPT
• Dimensions: 1.06 in Dia x 1.19 in L
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
• Temperature Rating: 90 deg C
• Type: Strain Relief
