Emerson SR-505 SR-505 GEDNEY 1&2 IN STR REL FITT

Product Description

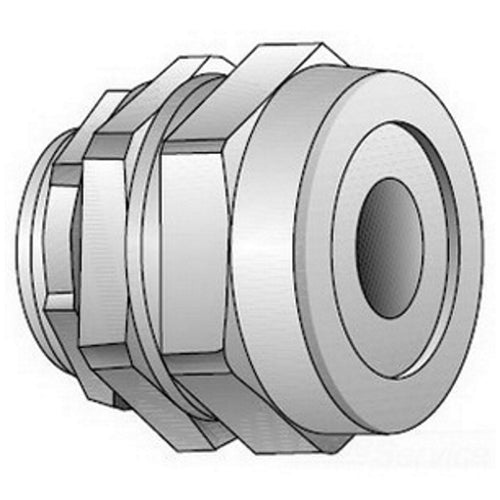

The O-Z/Gedney SR-505 is a strain relief straight cord connector designed for electrical applications. This connector accommodates cable openings ranging from zero point four to zero point five inches. Made of malleable iron and finished with zinc plating, it provides durability and protection against corrosion.

• Suitable for use in NEMA 4 and 6 conditions
• Temperature rated for ninety degrees Celsius
• Compatibility with MNPT connections

Product Highlights

This strain relief connector secures cords or cables as they enter enclosures or raceways, ensuring safe and reliable electrical connectivity.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650735

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.4 to 0.5 in
• Connection Type: MNPT
• Dimensions: 1.06 in Dia x 1.19 in L
• Finish: Zinc Plated
• Manufacturer Part Number: SR-505
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
• Temperature Rating: 90 deg C
• Trade Size: 1/2 in
• Type: Strain Relief
