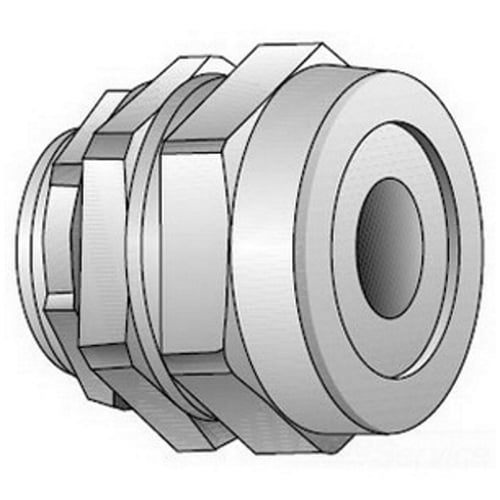

Emerson SR-504 OAG 1&2 IN STR REL FITT

Product Description

Emerson SR-504 is a strain relief straight cord connector designed for securing cables in various applications. This cord connector has a trade size of half an inch and accommodates cable openings from zero point three to zero point four inches. Made from malleable iron with a zinc plated finish, it offers durability and resistance. It has a temperature rating of ninety degrees Celsius and is suitable for MNPT connections.

• UL listed NEMA 4 and 6 when properly installed
• Compatible with multiple cable sizes
• Constructed for indoor and outdoor use

Product Highlights

The SR-504 connector helps protect and secure electrical cords and cables entering enclosures or raceways.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650730

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.3 to 0.4 inches
• Connection Type: MNPT
• Dimensions: 1.06 inches Diameter x 1.13 inches Length
• Finish: Zinc Plated
• Manufacturer Part Number: SR-504
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
• Temperature Rating: 90 degrees Celsius
• Trade Size: 1/2 inch
• Type: Strain Relief
