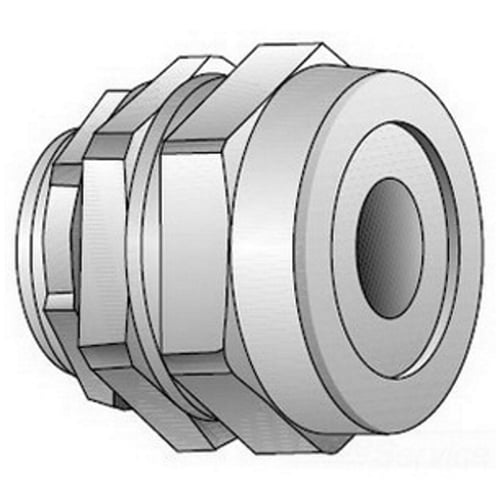

Emerson SR-502 Strain Relief Straight Cord Connector 1/2 in Trade

Product Description

The Emerson SR-502 is a strain relief straight cord connector designed for use in electrical applications. This connector is made from malleable iron and features a zinc plated finish for durability. It is suitable for cables with openings of zero point one to zero point two inches.

• UL listed NEMA four and six when installed into a NPT threaded entry or UL listed conduit hub.
• Temperature rating of ninety degrees Celsius.
• Standard applications include securing and sealing cords or cables entering enclosures or raceways.

Product Highlights

The Emerson SR-502 provides effective strain relief for cables, ensuring secure connections in various electrical setups.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650720

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.1 to 0.2 in
• Connection Type: MNPT
• Dimensions: 1.06 in Dia x 1.13 in L
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Temperature Rating: 90 deg C
• Trade Size: 1/2 in
• Standards/Approvals: ARRA Compliant | RoHS Compliant | CSA 009795 C22.2 No. 18 | Federal Specification A-505-52 | UL File No. E11857
