Product Description

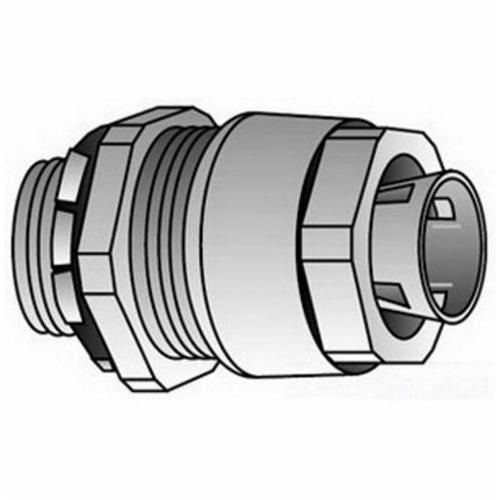

The Emerson SR-50-375 is a Grip-Tite strain relief straight cord connector designed for securing and sealing cords or cables. It features a tapered MNPT connection and supports cable openings ranging from one-fourth inch to three-eighths inch. Ideal for commercial and industrial applications, this connector is made of malleable iron with a zinc plated finish, offering durability and resistance to corrosion.

  • Supports cable openings from 1/4 inch to 3/8 inch.
  • Suitable for NEMA 4 enclosures and wet locations.
  • UL Listed for various installation environments.

Product Highlights

The SR-50-375 is easy to install and allows for quick connection without disassembly. Its design accommodates close spacing between connectors, making it a reliable choice for electrical fittings.

Product Information

Standard Information

  • Manufacturer: Emerson Electric
  • UPC: 78312650651
Technical Specifications
Application
For securing and sealing cords or cables entering enclosures or raceways
Cable Openings
1/4 to 3/8 inch
Color
White
Connection Type
Tapered MNPT
Dimensions
1.38 inches Diameter x 1.25 inches Length
Finish
Zinc Plated
Manufacturer Part Number
SR-50-375
Material
Malleable Iron
Series
SR Series
Standards/Approvals
ARRA Compliant, RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification W-F-406E, UL File No. E11857, UL 514B
Temperature Rating
90 degrees Celsius
Trade Size
1/2 inch
Type
Strain Relief
