Emerson SR-20018 OZ-G SR-20018 2-IN 1.6-1.8 CORD CON

Product Description

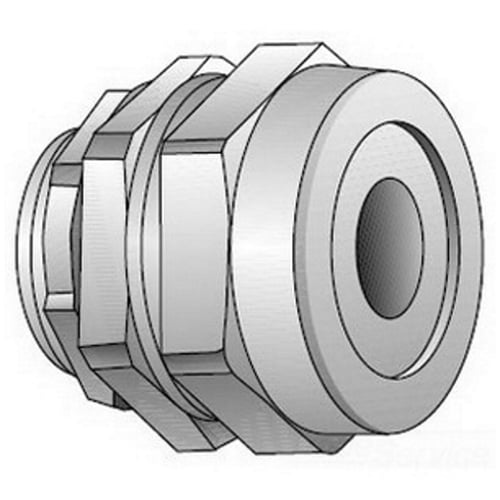

The Emerson SR-20018 is a strain relief connector made by O-Z/Gedney. It is designed for use with cables that have openings between 1.6 inches and 1.8 inches. This connector offers a reliable solution for electrical applications that need a secure and watertight fitting.

• Constructed from malleable iron and zinc plated for durability.
• Rated for a temperature of up to 194 degrees Fahrenheit.
• Suitable for commercial and industrial applications.

Product Highlights

This connector provideswatertight and oiltight protection. It meets UL NEMA 4 and 6 standards when installed properly.

Product Information

Standard Information

• Application: Commercial and Industrial Applications
• Trade Size: 2 inches

Technical Specifications

• Connection Type: MNPT
• Dimensions: 3 inches Diameter x 2.06 inches Length
• Material: Malleable Iron
• Series: SR Series
• Finish: Zinc Plated
• Temperature Rating: 194 degrees Fahrenheit
• Standards/Approvals: UL File No. E11857 Listed, CSA 009795 Certified, RoHS Compliant, ARRA Compliant
• Cable Openings: 1.6 to 1.8 inches
