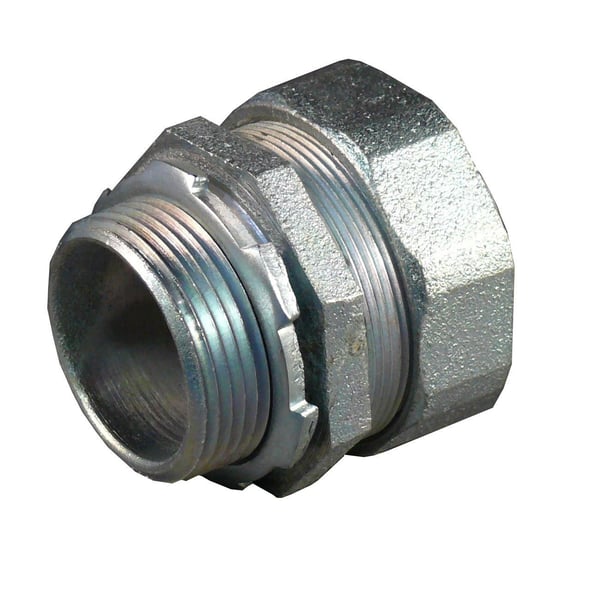

Emerson SR-12514 GEDNEY 1-1/4 IN STR STRAIN RLF CONN

Product Description

The Emerson SR-12514 is a strain relief connector designed for effective cable management in electrical installations. This connector supports cables with openings between 1.2 to 1.4 inches. It is suitable for commercial and industrial applications where durability and reliability are essential.

• Manufactured from malleable iron and zinc plated for corrosion resistance.
• Features PVC grommets for watertight and oil-tight seals.
• UL listed for NEMA 4 and 6 standards when properly installed.

Product Highlights

This strain relief connector ensures secure connections for cables in various settings, offering excellent performance under demanding conditions.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: SR-12514

Technical Specifications

• Application: Commercial and Industrial Applications
• Cable Openings: 1.2 to 1.4 in
• Connection Type: MNPT
• Dimensions: 2.38 in Dia x 1.56 in L
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: UL File No. E11857 Listed, CSA 009795 Certified, RoHS Compliant
• Temperature Rating: 194 deg F
• Trade Size: 1-1/4 in
• Type: Straight
