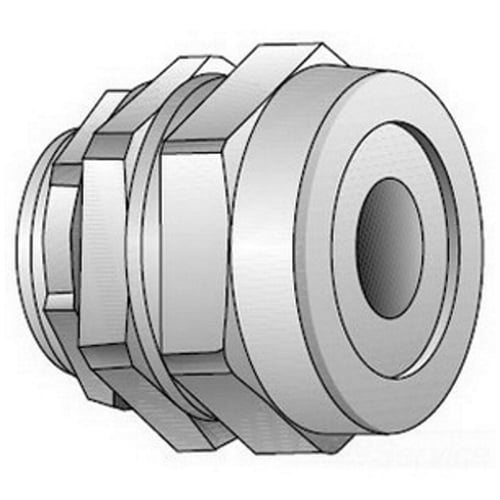

Emerson SR-1009 SR-1009 GEDNEY 1 IN STR STRAIN RLF CONN

Product Description

Emerson SR-1009 is a strain relief connector designed for securing cords and cables entering enclosures. This connector is part of the SR Series and accommodates cable openings between zero point eight and zero point nine inches. Made of malleable iron with a zinc plated finish, it is built to withstand high temperatures up to ninety degrees Celsius.

• Suitable for NPT threaded entries and UL listed conduit hubs
• Compatible with cords and cables of various sizes
• UL listed for NEMA 4 and 6 applications

Product Highlights

This product ensures a reliable connection for electrical cords in various applications.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650800

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: 0.8 to 0.9 inches
• Connection Type: MNPT
• Dimensions: 1.63 inches Dia x 1.25 inches L
• Finish: Zinc Plated
• Manufacturer Part Number: SR-1009
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: ARRA Compliant | RoHS Compliant | CSA 009795 C22.2 No. 18 | Federal Specification A-505-52 | UL File No. E11857
• Temperature Rating: 90 degrees Celsius
• Trade Size: 1 inch
• Type: Strain Relief
