Emerson SR-1008 OZ SR1008 CORD CONN POWER (1 in) REPLACEMENT MPN

Product Description

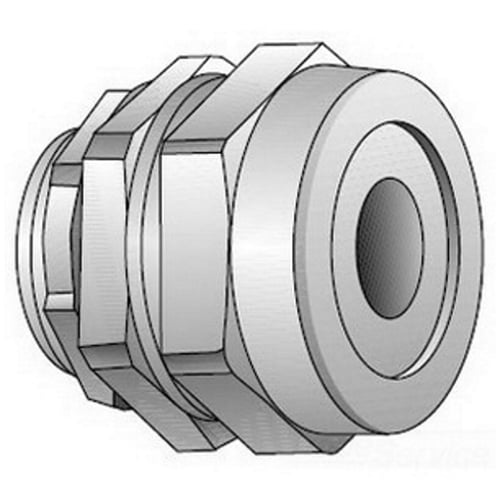

Emerson SR-1008 is an O-Z/Gedney Straight Cord Connector used for strain relief. It features a trade size of one inch and accommodates cable openings from zero point seven to zero point eight inches. This connector is made from malleable iron and has a zinc plated finish, suitable for various applications in electrical setups.

• UL listed for NEMA 4 and 6 when used with a NPT threaded entry
• Temperature rating of ninety degrees Celsius
• Dimensions measure one point sixty-three inches in diameter by one point twenty-five inches long

Product Highlights

This strain relief connector is designed to secure cords or cables entering enclosures or raceways effectively.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650795

Technical Specifications

• Application: For securing and sealing cords or cables entering enclosures or raceways
• Cable Openings: Zero point seven to zero point eight inches
• Connection Type: MNPT
• Dimensions: One point sixty-three inches in diameter by one point twenty-five inches long
• Finish: Zinc Plated
• Material: Malleable Iron
• Series: SR Series
• Temperature Rating: Ninety degrees Celsius
• Standards/Approvals: RoHS Compliant, CSA 009795 C22.2 No. 18, Federal Specification A-505-52, UL File No. E11857
