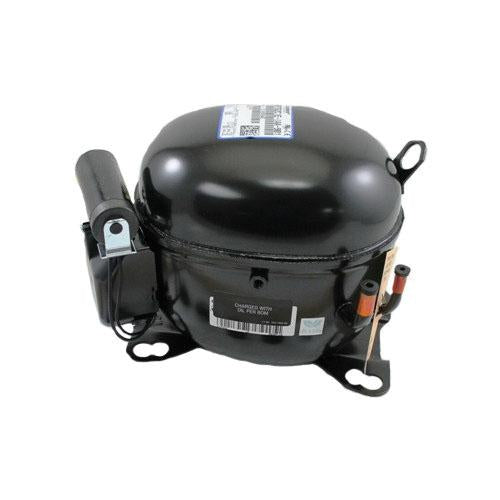

Emerson RST64C1E-CFA-959 Compressor 115/1 1/4 inches x 1 inches Rotolock Hermetic R404 Copelaweld

Product Description

The EMERSON RST64C1E-CFA-959 compressor is a hermetic compressor designed for refrigeration applications using R404A refrigerant. It operates at 115 VAC and features rotolock connections. This Copelaweld compressor is suitable for high-temperature refrigeration conditions. It has a 1/4" x 1" rotolock.

• Designed for refrigeration applications
• Utilizes R-404A, R-22, and HFC refrigerants
• Features rotolock connections

Product Highlights

This hermetic compressor is designed for refrigeration applications and features rotolock connections.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST64C1E-CFA-959

Technical Specifications

• Application: Refrigeration
• Refrigerant: R404
• Body Type: RS
• Dimensions: 10.30" x 7.10" x 9.20"
• Electrical: 115-1-60
• Frequency: 60Hz
• Height: 9.2"
• Length: 10.3"
• Liquid Line Size: 1/4"
• Mounting Dimensions: 8" x 4.8"
• Phase: Single
• Series-Brand: Copelaweld
• Suction Line Size: 1"RL
• Temperature Rating: High
• Voltage: 115V
• Width: 7.10"
• Amperage Rating: 13.05 A
• BTU Rating: 6400 Btu/hr
• CFM Rating: 2.77 cfm
• Compressor Oil: POE
• Discharge Line Size: 1/4 in Stub
• EER Rating: 3.45 to 4.9
• Flow Rate: 74 to 159 lb/hr
• Power Rating: 1365 W, 1 hp
• Refrigerant Type: R-22, R-404A, HFC
• Series: RS
• Sound Level: 65 to 72 dBA
• Speed Rating: 3500 rpm
• Tonnage: 1 ton
• Voltage Rating: 115 VAC
