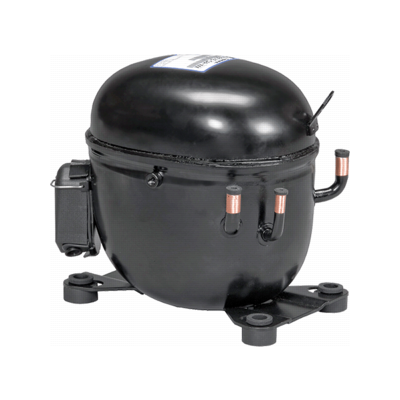

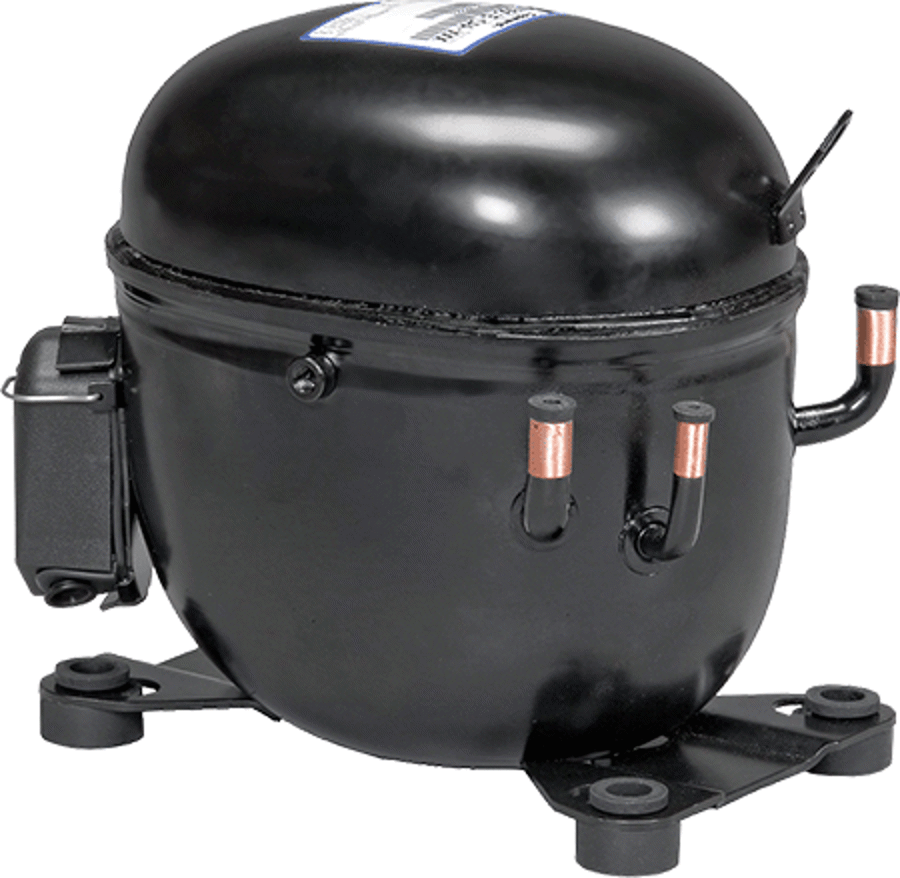

Emerson RST64C1E-CAV-901 Compressor, 208-230/1/60 1/4 inches x 3/8 inches

Product Description

The EMERSON RST64C1E-CAV-901 RST compressor offers advanced features for refrigeration applications. It operates at 208/230V, 60Hz, and single-phase power. Designed for extended medium temperature refrigeration, it uses R22/R404A refrigerant and polyolester oil. The compressor has a 1/4" liquid line size and a 3/8" suction line size.

• Fits Copeland Brand
• 1 HP
• 208/230V
• 1-Phase

Product Highlights

Hermetic compressor for refrigeration with 208/230V, single-phase power, and 1/4" x 3/8" line sizes.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST64C1E-CAV-901

Technical Specifications

• Phase: 1-phase
• Height: 9.21"
• Length: 10.30"
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R404A
• Series-Brand: Copeland
• Liquid Line Size: 1/4"
• Mounting Dimensions: 8" x 4.80" x 9.80"
• Body Type: RS
• Electrical: 208/230-1-60
• Suction Line Size: 3/8"
• Temperature Rating: High
• Voltage: 208/230V
• Width: 7.10"
• HP/Ton: 1
• APPLICABLE STANDARD: UL
• ITEM: COMPRESSOR, HERMETIC
• REFRIGERATION: EXTENDED MEDIUM TEMPERATURE
• REFRIGERANT TYPE: R22/R404A
• OIL TYPE: POLYOLESTER
• MOTOR TYPE: RUN/START CAPACITOR
• SUCTION SIZE: 3/8 INCH STUB
• DISCHARGE SIZE: 1/4 INCH STUB
• CURRENT RATING: 9 AMP (RATED LOAD), 12.6 AMP (MAXIMUM CONTINUOUS), 43 AMP (LOCKED ROTOR)
• CAPACITY: 6400 BTU/HOUR
• MODEL: RS
