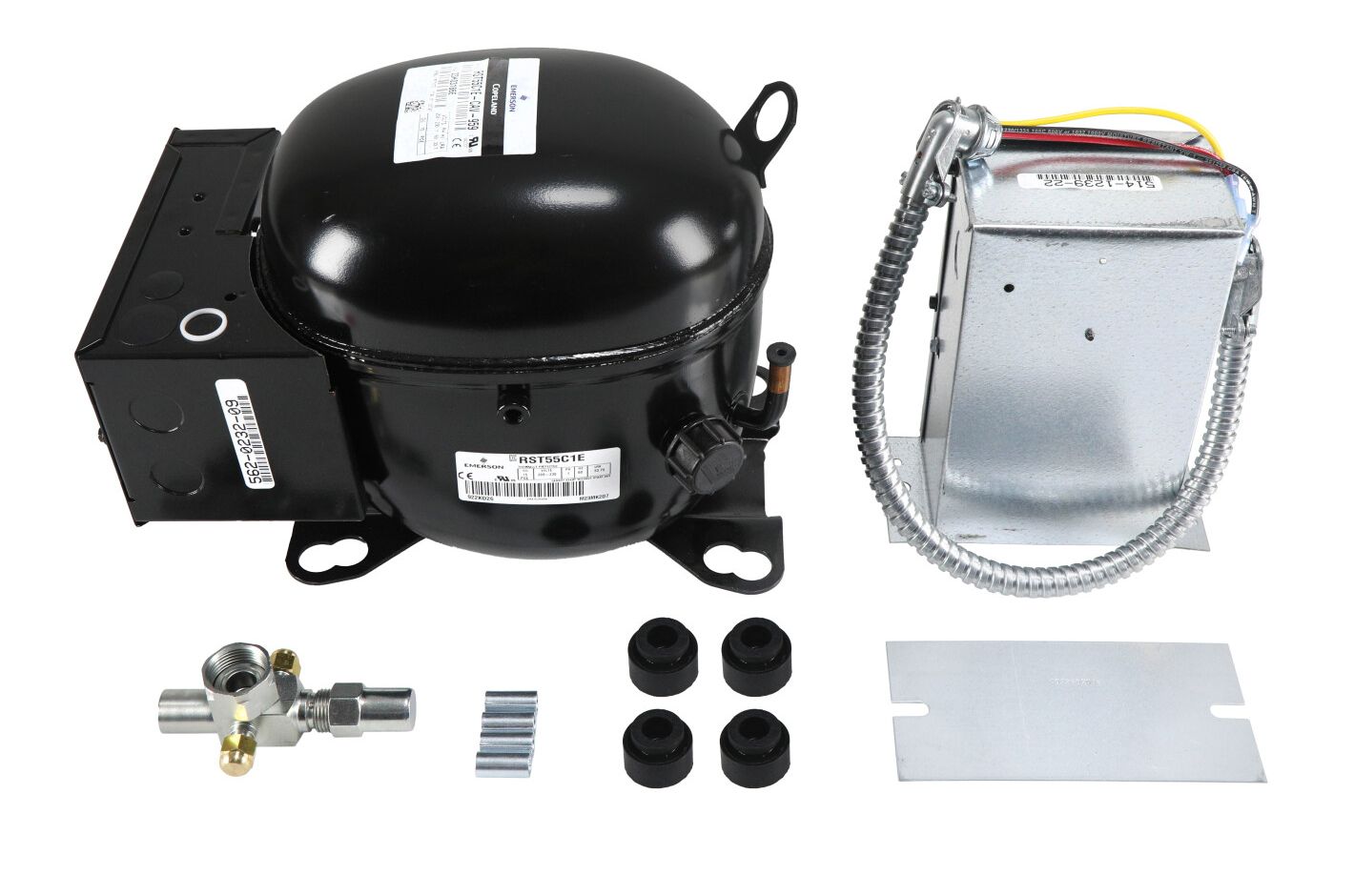

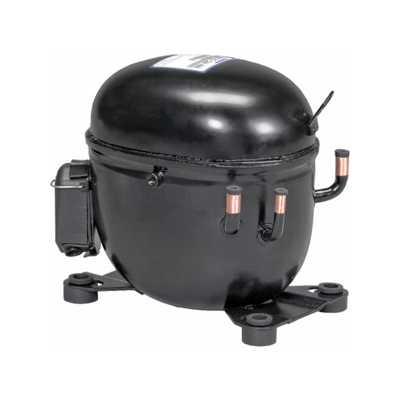

Emerson RST55C1E-CAV-959 Compressor 208-230/1 1/4 inches x 1 inches Rotolock Hermetic R404 Copelaweld

Product Description

The EMERSON RST55C1E-CAV-959 compressor is designed for refrigeration applications using R404A refrigerant. Suitable for applications ranging from -25°F to +30°F SST R404A, it can also be used for MT R407C and (R22) applications. It features rotolock suction spud and requires a valve or adapter for operation.

• Designed for refrigeration applications.
• Suitable for -25°F to +30°F SST R404A.
• Features rotolock suction spud.

Product Highlights

The EMERSON RST55C1E-CAV-959 is ideal for refrigeration and medium temperature applications using R404A and R407C refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST55C1E-CAV-959
• Country of Origin: US

Technical Specifications

• Application: Refrigeration
• Refrigerant: R404A
• Vendor Name: Copeland
• URI Part Number: RST55C1ECAV959
• Vendor Part Number: RST55C1E-CAV-959
• Length (In.): 16.00
• Width (In.): 15.00
• Height (In.): 13.00
• Application by Refrigerant: Medium Temp - R404A
• Capacity (BTUH): 5200
• Connection Discharge (In.): 1/4 S
• Connection Suction (In.): 1 RL
• Connection Type: Rotolock x Sweat
• Country of Origin: US
• Displacement (CFH): 129.13
• Displacement (In ³/Rev): 1.06
• Horsepower: 3/4
• Mount (In.): 8 x 4.8
• Oil: Polyol Ester
• Oil Recharge (Oz.): 13
• Phase: 1
• Rated Load Amps: 6.8
• Run Capacitor (Microfarad x Voltage): 15 x 440
• Voltage: 208-230
• Body Type: RS
• Electrical: 208/230-1-60
• Frequency: 60Hz
• Liquid Line Size: 1/4"
• Mounting Dimensions: 8" x 4.8"
• Series-Brand: Copelaweld
• Suction Line Size: 1"RL
• Temperature Rating: High
• HP/Ton: 3/4
