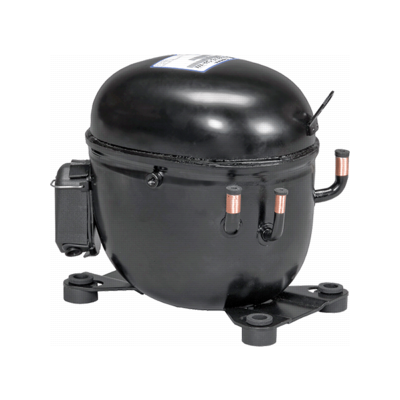

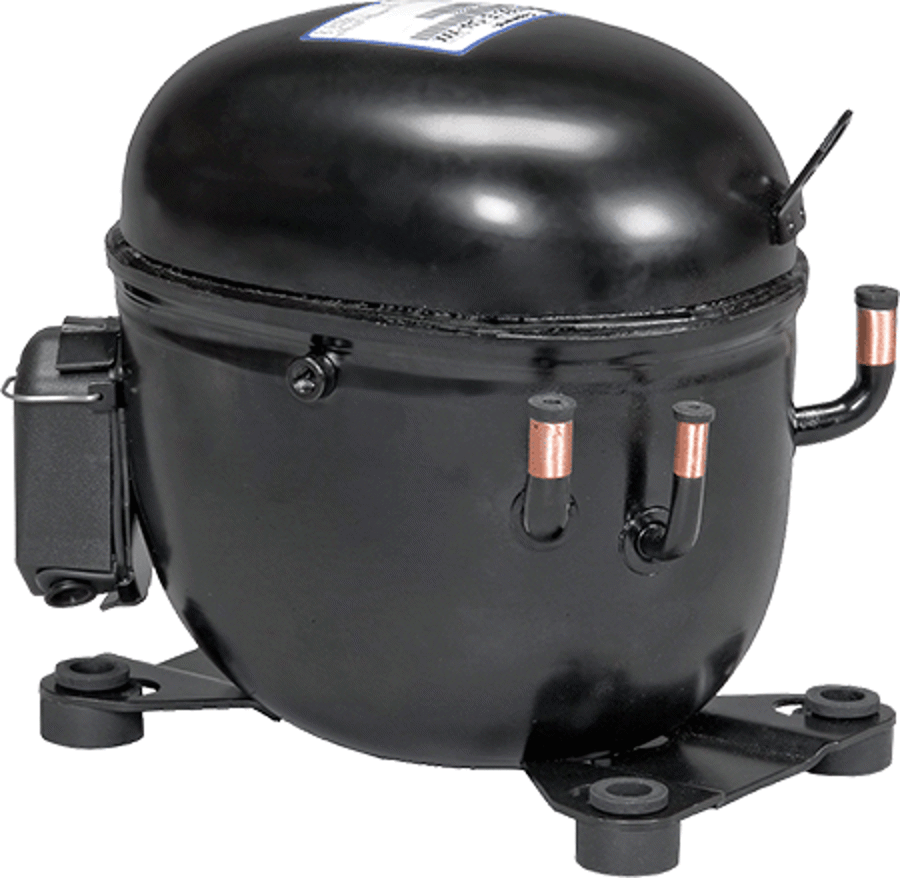

Emerson RST55C1E-CAV-901 Compressor, 208-230/1/60 1/4 inches x 3/8 inches Hermetic R404 Copelaweld

Product Description

The EMERSON RST55C1E-CAV-901 Copeland RST compressor is designed for specialized refrigeration applications. Operating at 208-230V/1/60Hz, it features 1/4" liquid line and 3/8" suction line connections and uses R404A refrigerant. This hermetic compressor is suitable for high-temperature refrigeration conditions.

• Hermetic reciprocating compressor design
• Operates at 208/230V, 60Hz
• Designed for refrigeration applications

Product Highlights

The EMERSON RST55C1E-CAV-901 is a hermetic compressor for refrigeration, featuring robust construction and efficient operation.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST55C1E-CAV-901

Technical Specifications

• Phase: 1-phase
• Height: 8.70"
• Length: 10.30"
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R404A
• Series-Brand: Copeland
• Liquid Line Size: 1/4"
• Body Type: RS
• Electrical: 208/230-1-60
• Suction Line Size: 3/8"
• Temperature Rating: -10 to 20 deg F Evaporator, 120 deg F Condensing, 40 deg F Return Gas, 120 deg F Liquid
• Voltage: 208/230V
• Width: 7.10"
• Amperage Rating: 4.8 A
• BTU Rating: 5500 Btu/hr
• CFM Rating: 2.15 cfm
• Compressor Oil: POE
• Discharge Line Size: 1/4 in Stub
• EER Rating: 3.3 to 5.15
• Flow Rate: 56 to 126 lb/hr
• Power Rating: 1025 W, 3/4 hp
• Series: RS
• Sound Level: 63 to 67 dBA
• Speed Rating: 3500 rpm
• Tonnage: 0.75 ton
• Voltage Rating: 208 to 230 VAC
• HP/Ton: 3/4
