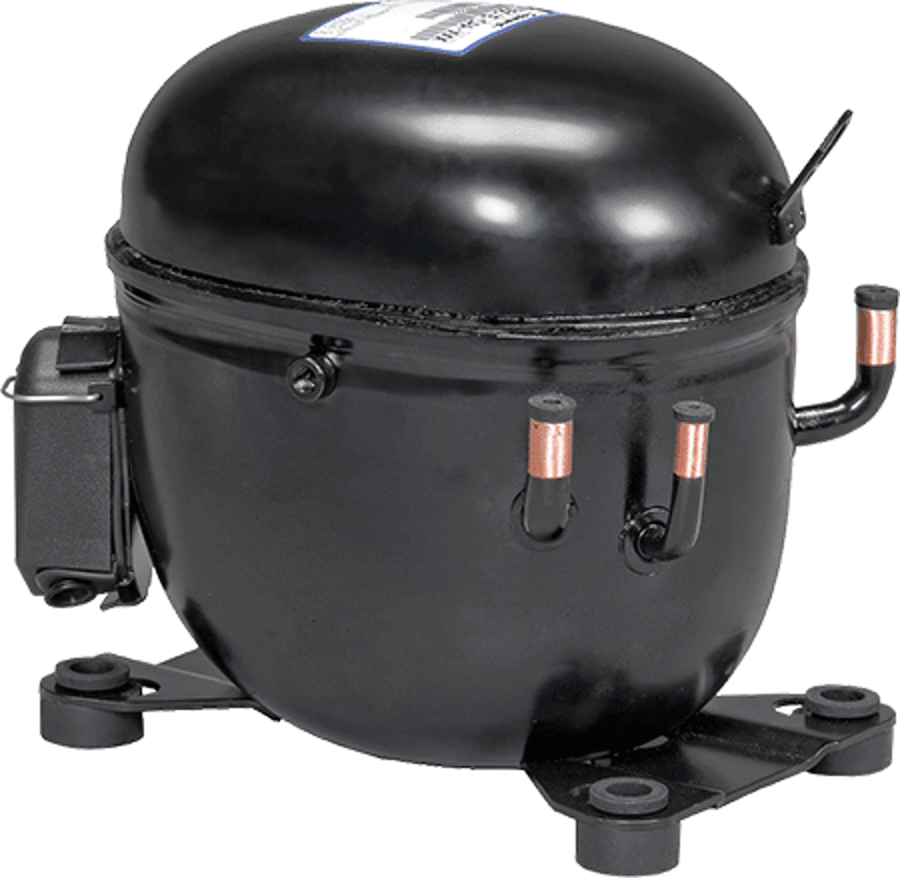

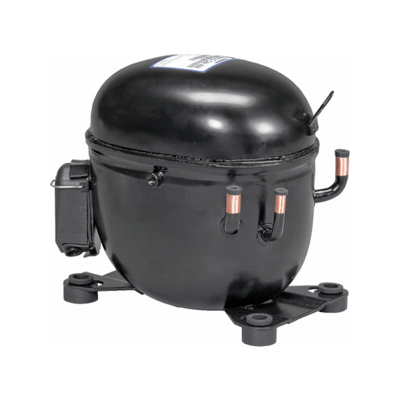

Emerson RST45C1E-IAA-901 Compressor 890 W

Product Description

The EMERSON RST45C1E-IAA-901 is a hermetic compressor designed for refrigeration applications using R404 refrigerant. It operates at 115 VAC and delivers 890 W of power, equivalent to 1/2 hp. This compressor is suitable for use with R-22, R-404A, and HFC refrigerants. It features a 3/8 in stub suction line and a 1/4 in stub discharge line.

• Induction run-capacitor start motor type
• External inherent protection-one-protector (line break) Use with contactor
• 1.8 cu-ft/min CFM rating

Product Highlights

Hermetic compressor for refrigeration, featuring a robust design and compatibility with multiple refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST45C1E-IAA-901

Technical Specifications

• Application: Refrigeration
• Refrigerant: R404
• Amperage Rating: 10.1 A
• BTU Rating: 4500 Btu/hr
• CFM Rating: 1.8 cfm
• Compressor Oil: POE
• Discharge Line Size: 1/4 in Stub
• EER Rating: 3 to 4.6
• Flow Rate: 42 to 98 lb/hr
• Power Rating: 890 W, 1/2 hp
• Refrigerant Type: R-22, R-404A, HFC
• Series: RS
• Speed Rating: 3500 rpm
• Suction Line Size: 3/8 in Stub
• Temperature Rating: -10 to 20 deg F Evaporator, 120 deg F Condensing, 40 deg F Return Gas, 120 deg F Liquid
• Voltage Rating: 115 VAC
• Mounting Dimensions: 8" x 4.8"
• Phase: Single
• Frequency: 60Hz
• Liquid Line Size: 1/4"
• Width: 7.10"
• Height: 8.69"
• Length: 10.3"
