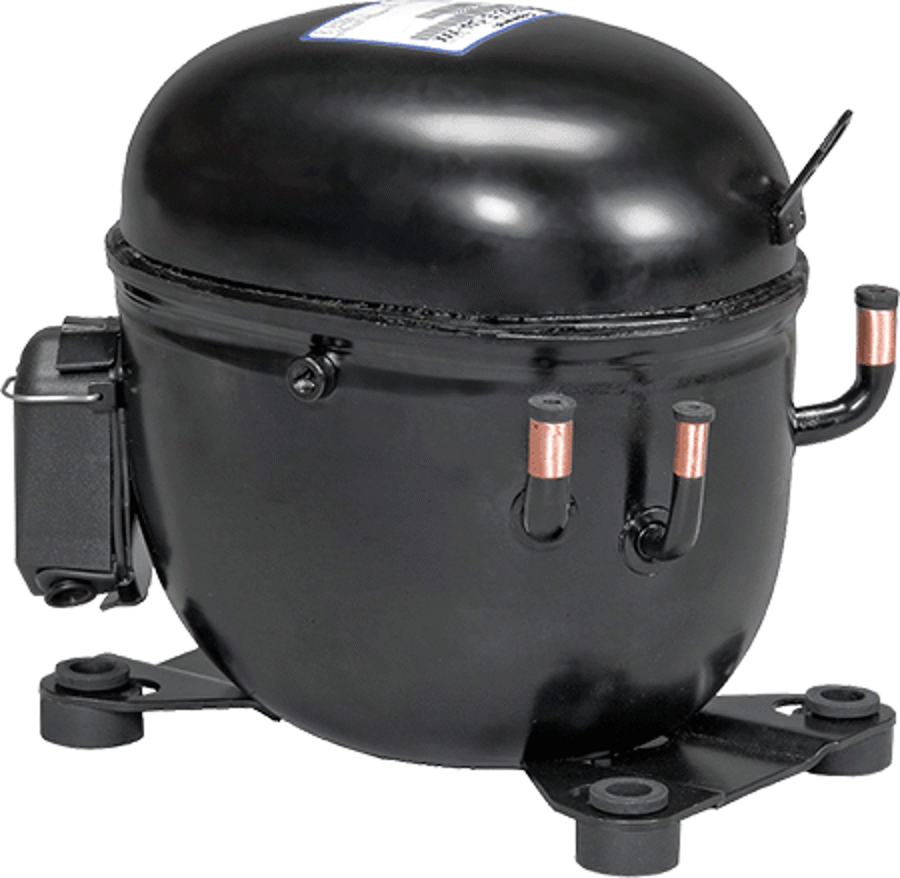

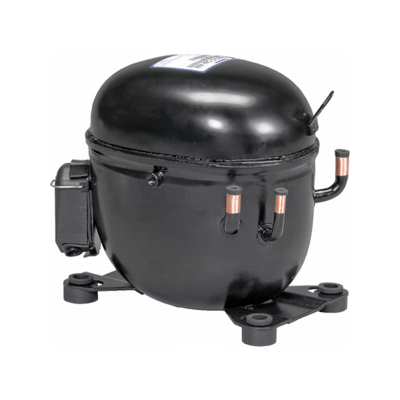

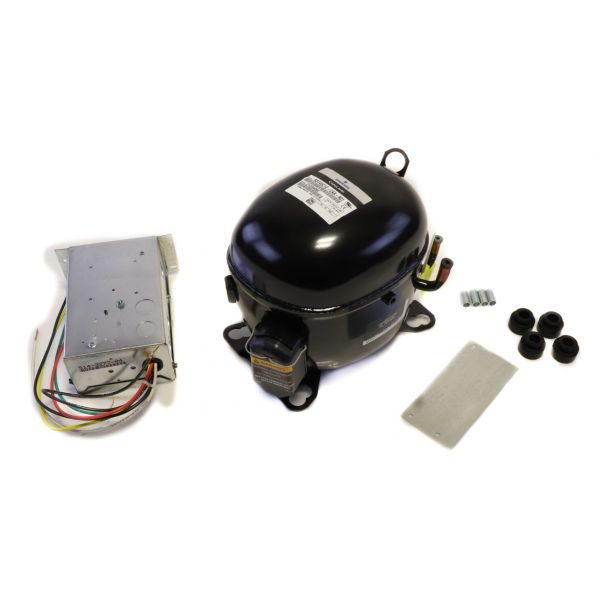

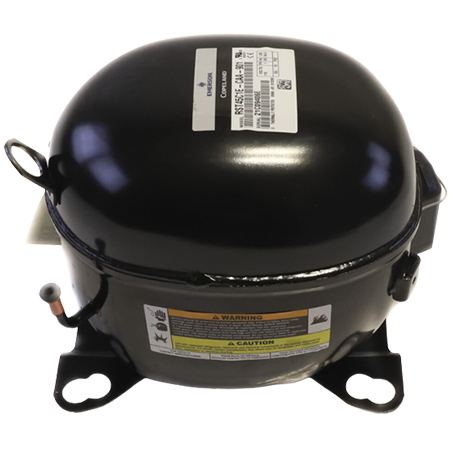

Emerson RST45C1E-CAA-901 Compressor 115V 1/4 inches x 3/8 inches

Product Description

The EMERSON RST45C1E-CAA-901 is a single-phase compressor with a 115V and 60 Hz frequency. Suitable for high-temperature applications with R404A, R407C, R448A, and R449A refrigerants. It features a 1/4" ODF discharge connection and 3/8" ODF suction connections. The compressor is UL-recognized and CE-marked.

• Single-phase compressor with a power rating of 1/8 HP.
• Features a 4,250 BTU capacity and 107.7 CFH flow rate.
• Compatible with R404A, R407C, R448A, and R449A refrigerants.

Product Highlights

The RST45C1E-CAA-901 compressor is designed for high-temperature applications and is easy to install with its ODF connections.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RST45C1E-CAA-901

Technical Specifications

• Application: H/P
• Body Type: RS
• Dimensions: 10.30" x 7.10" x 8.69"
• Electrical: 115-1-60
• Frequency: 60Hz
• Height: 8.69"
• Length: 10.3"
• Liquid Line Size: 1/4"
• Mounting Dimensions: 8" x 4.8"
• Phase: Single-Phase
• Refrigerant: R-407C
• Series-Brand: Copelaweld
• Suction Line Size: 3/8"
• Temperature Rating: High
• Voltage: 115V
• Width: 7.10"
• Capacity: 4,250 BTU
• Cooling Efficiency (EER): 11.9
• Discharge Connection Size: 1/4" ODF
• Horsepower: 1/8 HP
• Approvals: UL-recognized and CE-marked
• Refrigerant Type: R404A, R407C, R448A, and R449A
• Capacity Range: 4,250 BTU
• Suction Connection Size: 3/8" ODF
• Applications: High Temperature
