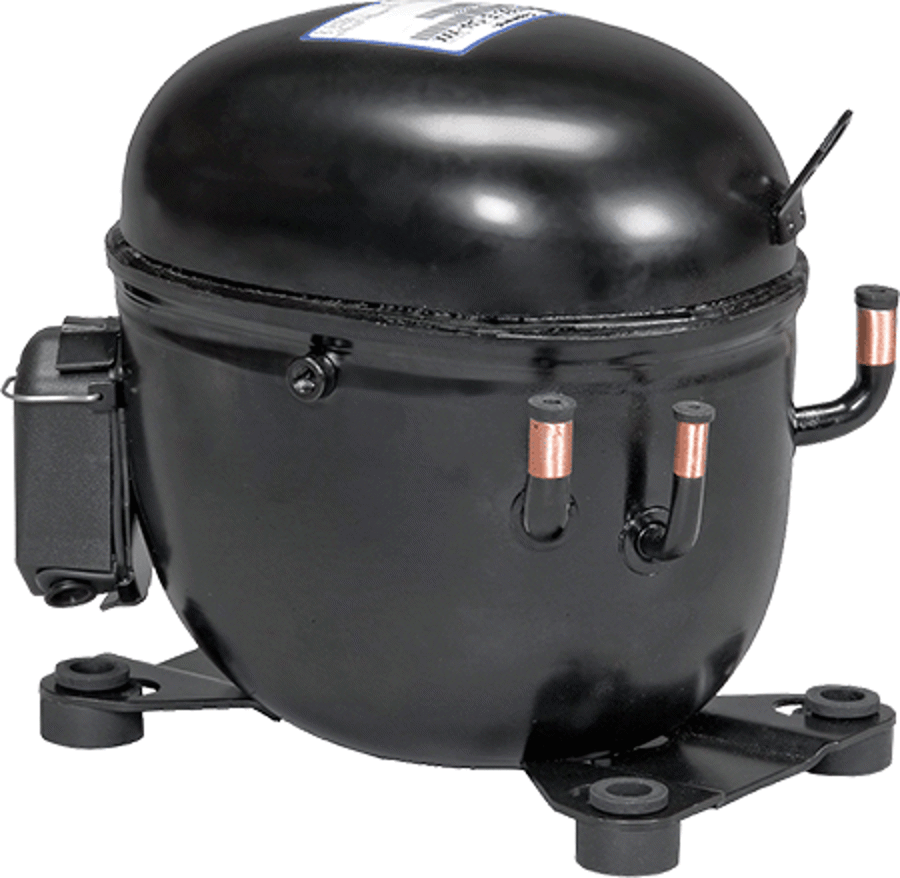

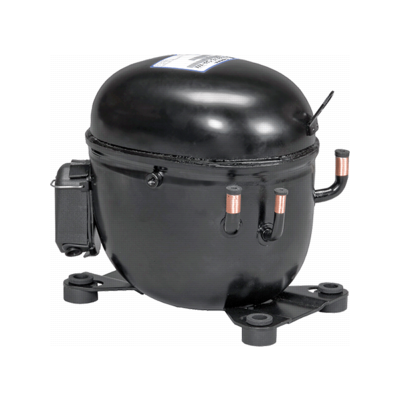

Emerson RRT62C1E-IAA-901 Compressor, 115-1-60 Hermetic R134A Copelaweld

Product Description

The EMERSON RRT62C1E-IAA-901 is a compressor designed for refrigeration applications. This hermetic compressor is designed to address the challenges of Foodservice, Food Retail, Industrial, and Environmental/Medical industries. It features a 115V, 1-phase motor operating at 60Hz and uses R134A refrigerant. The compressor has a capacity of 5600 BTU.

• 5600 BTU Capacity
• Suction Gas Management
• High Flow Valving

Product Highlights

This hermetic compressor is ideal for refrigeration applications, offering superior liquid handling and multi-refrigerant approval.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: RRT62C1E-IAA-901
• Country of Origin: SVK

Technical Specifications

• Phase: 1-phase
• Height: 8.20"
• Length: 10.30"
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R134A
• Series-Brand: Copeland
• Liquid Line Size: 1/4"
• Cooling Efficiency (EER): UP TO 6.6
• Capacity Range (BTU): 3060-5760
• Voltage@Hz: 115@60
• Product Type: Compressor
• Capacity (BTU): 5600
• Voltage: 115V
• Suction Line Size: 3/8"
• Temperature Rating: High
• Width: 7.10"
• Rated Load Amps: 9.5
• Oil Type: POE
• HP/Ton: 1/2
