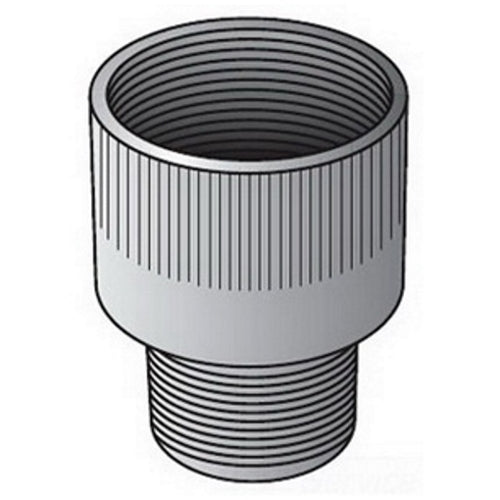

Emerson ME-323S Male Conduit Enlarger 5/8 in

Product Description

The Emerson ME-323S is a male conduit enlarger designed for rigid conduit and IMC use. This product offers an effective solution for enlarging threaded hubs in enclosures or fittings.

• Application: Used to enlarge threaded hubs.
• Material: Constructed from steel with a zinc electroplate finish.
• Dimensions: Features a diameter of one and three-sixteenth inches and a length of one and nine-sixteenth inches.

Product Highlights

This conduit enlarger is suitable for use in explosionproof applications and is dust-ignitionproof, ensuring safety and reliability in various environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Series: ME-S

Technical Specifications

• Application: For enlarging threaded hub in an enclosure or fitting
• Dimensions: 1-3/16 in Dia x 1-9/16 in L
• Finish: Zinc Electroplate
• Material: Steel
• Size: 5/8 in
• Standards/Approvals: UL 514B/886|UL File No. E34997|CSA C22.2 No. 30|CSA 009795|NEC Articles 500-503/505, Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|RoHS Compliant
• Suitable For Use With: Rigid Conduit/IMC
• Type: Male
