Emerson M7ZH-H046-IAA-177 Condensing Unit 1/6-3/4 hp 115/1 Hermetic 3/8 inches x 1/2 inches Air-Cooled

Product Description

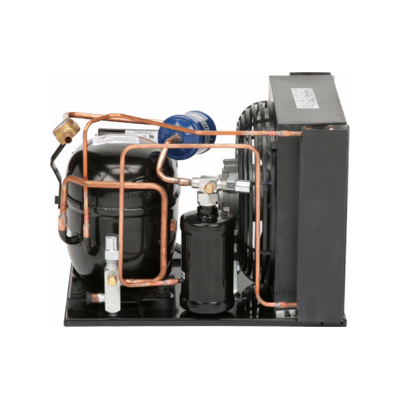

The EMERSON M7ZH-H046-IAA-177 is a condensing unit with a power range of 1/6-3/4 hp, designed for air-cooled applications. It operates at 115V with a frequency of 60Hz and includes a 3/8" liquid line size and 1/2" suction line size. The unit features a Copelaweld hermetic compressor and is part of the M Series Z Chassis.

• Copelaweld Hermetic Air-Cooled Condensing Unit
• Features a receiver, fan guard, and BX conduit
• Air cooled steel construction

Product Highlights

This EMERSON condensing unit is ideal for various cooling applications, providing efficient and reliable performance with its robust design and components.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M7ZH-H046-IAA-177

Technical Specifications

• MCA: 12.8
• Type: Condensing Unit
• Phase: 1
• Voltage: 115V
• Frequency: 60Hz
• Series-Brand: Copeland
• Liquid Line Size: 3/8"
• Suction Line Size: 1/2"
• Body Type: M
• Chassis: Z
• Compressor: RRT62C1E-IAA-104
• Max Over-Current Protection: 20
• Power: 1/2 hp
• Receiver Capacity R-134a: 1.5
• Receiver Capacity R-450: 1.5
• Receiver Capacity R-513: 1.5
• Refrigerant: R-513
