Emerson M7JH-H029-IAA-177 Condensing Unit, 1/4 hp 115/1 Hermetic 1/4 inches Sweat x 3/8 inches Sweat Air-Cooled R134A

Product Description

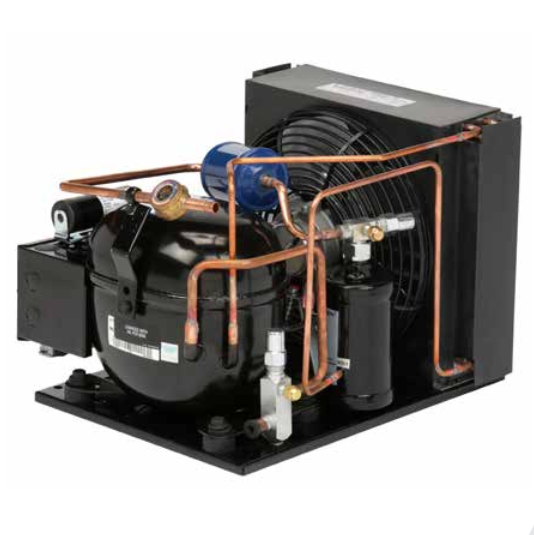

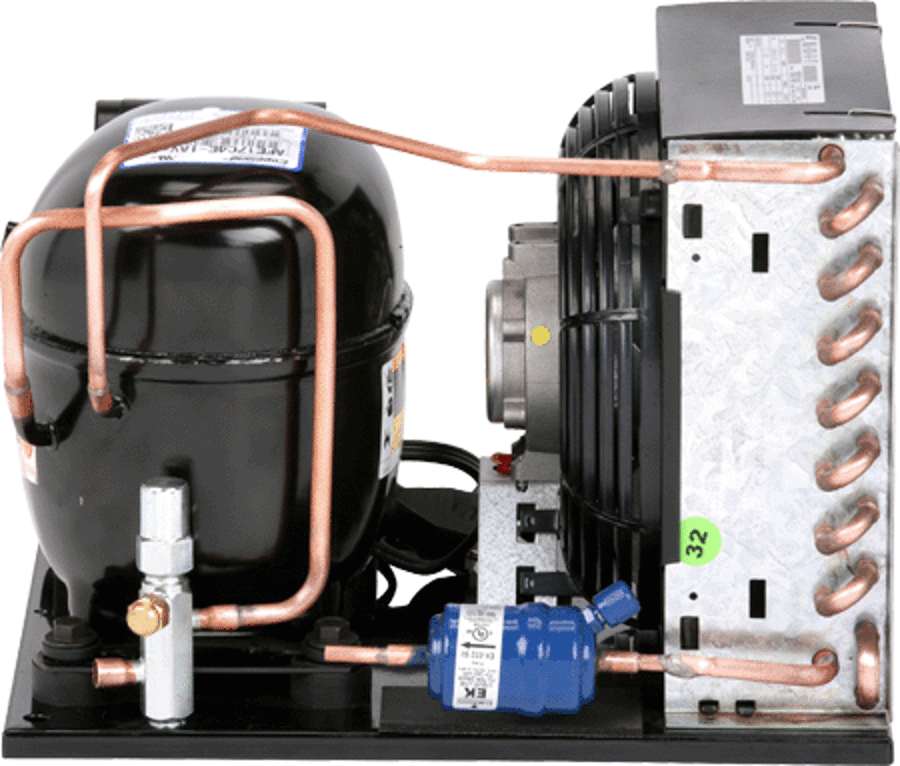

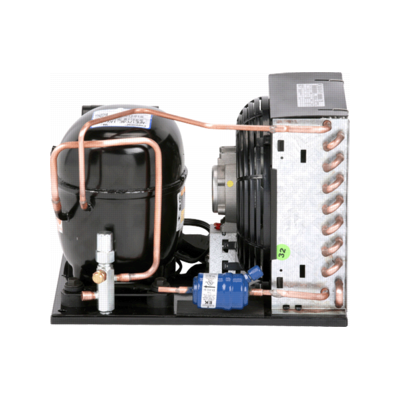

The EMERSON M7JH-H029-IAA-177 is a condensing unit with a 1/4 hp motor. It features a receiver, fan guard, and BX conduit. Designed as an air-cooled steel unit, it measures 14.39" x 11.57" x 11.37". This unit operates at 115V, 60Hz, and single-phase power, utilizing R-513 refrigerant.

• Copelaweld Hermetic Air-Cooled Condensing Unit
• M Series J Chassis Hermetic Reciprocating Air-Cooled Condensing Unit
• All models rated up to 110F Ambient temperature

Product Highlights

The M7JH-H029-IAA-177 condensing unit offers reliability and high energy efficiency in a compact design.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M7JH-H029-IAA-177

Technical Specifications

• MPN: M7JH-H029-IAA-177
• Product SKU: m7jh-h029-iaa-177
• Brand: Emerson
• UOM: EA
• Body Type: M
• Chassis: J
• Compressor: ARE35C5E-IAA-103
• Dimensions: 14.39" x 11.57" x 11.37"
• Electrical: 115-1-60
• Frequency: 60Hz
• Height: 11.37"
• Length: 14.39"
• Liquid Line Size: 1/4"S
• Max Over-Current Protection: 15
• MCA: 9.3
• Phase: Single
• Power: 1/4 hp
• Receiver Capacity R-134a: 1.5
• Receiver Capacity R-450: 1.5
• Receiver Capacity R-513: 1.5
• Refrigerant: R-513
• Series-Brand: Copelaweld
• Suction Line Size: 3/8"S
• Voltage: 115V
• Width: 11.57"
• Refrigerant Type: R-134A, R-450A, R-513A
• Temperature Application: High Temperature
• Compressor Motor Type: Induction Run - Capacitor Start
• Compressor Motor Protection: External Inherent Protection - One Protector Line Break
• Approvals: UL Recognized and CUL Certified
• Horsepower: 1/4
• Amperage Rating: 9.3 A
• EER Rating: 14.1
