Emerson M7JH-0018-IAA-177 Condensing Unit 1/6-3/4 hp

Product Description

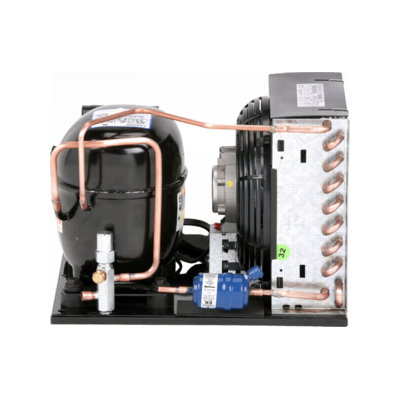

The EMERSON M7JH-0018-IAA-177 condensing unit is a hermetic air-cooled unit designed for medium temperature applications. It operates at 115V and 60Hz. The unit features a 1/4" liquid line size and a 3/8" suction line size. It is part of the Copeland series and is designed for use with single-phase power.

• Copelaweld Hermetic Air-Cooled Condensing Unit
• Features a receiver, fan guard, and BX Conduit
• M Series J Chassis Hermetic Reciprocating Air-Cooled Condensing Unit

Product Highlights

This EMERSON condensing unit is air-cooled and suitable for various refrigeration needs. It ensures efficient heat transfer and reliable performance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M7JH-0018-IAA-177

Technical Specifications

• MCA: 6.8
• Type: Condensing Unit
• Phase: 1
• Width: 11.45"
• Voltage: 115V
• Frequency: 60Hz
• Application: Medium Temp
• Series-Brand: Copeland
• Liquid Line Size: 1/4"
• Suction Line Size: 3/8"
• Body Type: M
• Chassis: J
• Compressor: ARE25C4E-IAA-103
• Height: 11.37"
• Length: 14.10"
• Max Over-Current Protection: 15
• Power: 1/5 hp
• Receiver Capacity R-134a: 1.5
• Receiver Capacity R-450: 1.5
• Receiver Capacity R-513: 1.5
• Refrigerant: R-513
