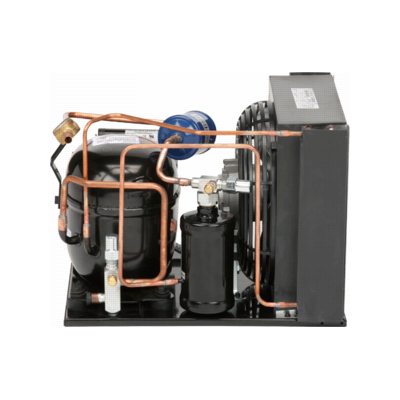

Emerson M6ZM-0032-IAA-177 Condensing Unit, 1/3 hp 115/1 Hermetic 1/4 inches x 5/16 inches

Product Description

The EMERSON M6ZM-0032-IAA-177 is a hermetic condensing unit with 1/3 horsepower and 115/1 voltage. This air-cooled unit is compatible with R404A/R448A/R449A refrigerants and features a Copelaweld compressor. It is designed for medium temperature applications and includes a receiver and fan guard.

• Hermetic air-cooled design
• Compatible with R404A, R448A, and R449A refrigerants
• Features a Copelaweld compressor

Product Highlights

This condensing unit is ideal for medium temperature applications requiring a reliable and efficient cooling solution.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M6ZM-0032-IAA-177

Technical Specifications

• Phase: 1-phase
• Power: 1/3 hp
• Width: 12.7"
• Height: 11.7"
• Length: 16.5"
• Voltage: 115V
• Max Fuse: 15
• Oil Type: POE
• Frequency: 60Hz
• Compressor: Copelaweld
• Application: Medium Temperature
• Refrigerant: R404A
• Series-Brand: Copeland
• Liquid Line Size: 0.25"
• Suction Line Size: 0.37"
• MCA: 8.6
• Receiver Capacity R-404A: 1.3
• Receiver Capacity R-448: 1.4
• Receiver Capacity R-449: 1.4
• Amperage Rating: 8.6 A
• EER Rating: 14.1
