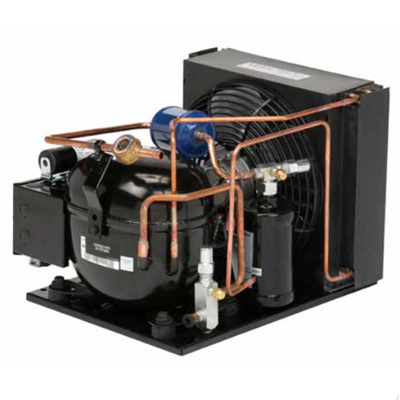

Emerson M6KP-0102-CAV-072 Condensing Unit 1 hp 208-230/1 Hermetic 3/8 inches Sweat x 3/8 inches Sweat Air-Cooled R404A/R407C/R448A/R449A

Product Description

The EMERSON M6KP-0102-CAV-072 condensing unit is a 1 hp hermetic air-cooled unit designed for multiple applications. It operates on 208/230V single-phase power and is compatible with R404A, R407C, R448A, and R449A refrigerants. Features include a receiver, fan guard and BX conduit. It has a 3/8" sweat liquid line size and a 3/8" sweat suction line size.

• Copelaweld Hermetic Air-Cooled Condensing Units
• M Series K Chassis Hermetic Reciprocating Air-Cooled Condensing Unit
• Air Cooled steel

Product Highlights

This condensing unit is suitable for medium and low-temperature conditions and offers application flexibility.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M6KP-0102-CAV-072

Technical Specifications

• MCA: 12.7
• Phase: 1 ph
• Power: 1 hp
• Width: 18.3"
• Height: 16.2"
• Length: 24"
• Voltage: 208/230V
• Max Fuse: 20
• Oil Type: POE
• Frequency: 60Hz
• Compressor: RST64C1E-CAV-102
• Application: Multiple
• Refrigerant: R-449A
• Series-Brand: Copeland
• Liquid Line Size: 0.37"
• Suction Line Size: 0.5"
• Body Type: M
• Chassis: K
• Max Over-Current Protection: 20
• Receiver Capacity R-404A: 4.9
• Receiver Capacity R-448: 5.1
• Receiver Capacity R-449: 5.1
• Amperage Rating: 12.7 A
• BTU Rating: 0 to 125600 Btu/hr
• EER Rating: 14.1
• Frequency Rating: 60 Hz
• HP Rating: 1 hp
• Refrigerant Type: R-404A, R-448A, R-449A
