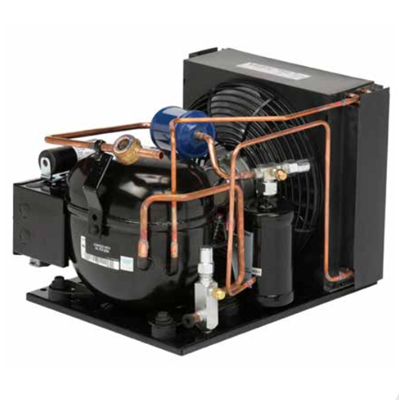

Emerson M6KP-0075-CAV-072 Condensing Unit, 3/4 hp 208-230/1 Hermetic 3/8 inches x 3/8 inches Air-Cooled R404A/R407C/R448A/R449A

Product Description

The EMERSON M6KP-0075-CAV-072 condensing unit is a 3/4 hp hermetic air-cooled unit designed for multiple applications. It operates on 208/230V single-phase power at 60Hz and is compatible with R404A, R407C, R448A, and R449A refrigerants. The unit features a Copelaweld compressor and has liquid and suction line sizes of 0.37" and 0.5" respectively.

• Air-cooled design for efficient heat dissipation.
• Compatible with multiple refrigerants including R404A, R448A and R449A.
• Features a Copelaweld hermetic compressor.

Product Highlights

Durable condensing unit suitable for medium to low temperature refrigeration applications. Ideal for use in food service, cold storage, and industrial cooling systems.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M6KP-0075-CAV-072

Technical Specifications

• Phase: 1-phase
• Power: 3/4 hp
• Width: 16.4"
• Height: 13.1"
• Length: 24"
• Voltage: 208/230V
• Max Fuse: 15 A
• Oil Type: POE
• Frequency: 60Hz
• Compressor: Copelaweld
• Application: Multiple
• Refrigerant: R404A/R407C/R448A/R449A
• Liquid Line Size: 0.37"
• Suction Line Size: 0.5"
• Supplier Part #: M6KP-0075-CAV-072
• Horsepower: 3/4hp
• Compressor Type: Hermetic
• Cooling: Air
• Amperage Rating: 9.7 A
• BTU Rating: 0 to 125600 Btu/hr
• EER Rating: 14.1
