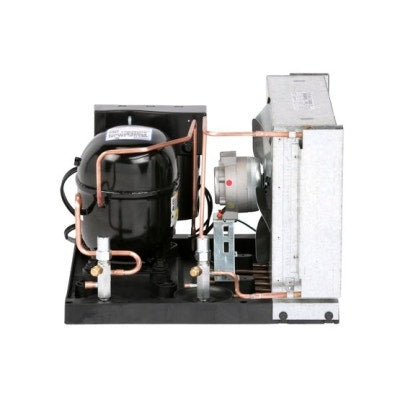

Emerson M6JM-H028-IAA-177 Welded Unit 7/25 HP

Product Description

The EMERSON M6JM-H028-IAA-177 welded unit is designed for medium temperature applications. This air-cooled unit features a 7/25 HP compressor and is compatible with R-404A, R-407C, R-448A, and R-449A refrigerants. It operates at 115 VAC and 60 Hz, with a single-phase power supply. The unit includes a 1/4" liquid line and a 3/8" suction line.

• Air-cooled condenser type for efficient heat dissipation.
• Suitable for medium temperature applications.
• Uses R-404A, R-407C, R-448A, and R-449A refrigerants.

Product Highlights

This Emerson welded unit is ideal for refrigeration applications requiring a reliable and efficient condensing unit.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: M6JM-H028-IAA-177
• Country of Origin: USA

Technical Specifications

• Amps: 6
• Application Temperature: Medium Temperature
• Base: Air Cooled Steel 13.6 x 10.8
• Brand: Emerson
• Compressor HP: 7/25 HP
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Full Load Amps: 6
• Height: 11.4
• Length: 14.1
• Liquid Line Size (OD): 1/4"
• OPT Code: M6JMH028IAA177
• Phase: Single
• Prop 65: Yes
• Protection: External Inherent
• Rated Load Amps (RLA): 6
• Refrigerant: R-404A; R-407C; R-448A; R-449A
• Suction Line Size (OD): 3/8"
• UL Listed: No
• UL Recognized: Yes
• Voltage: 115 VAC
• Width: 11.4
• Minimum Circuit Ampacity (MCA): 8.2
• Compressor Type: Reciprocating
• Country of Origin: USA
• Compressor: Hermetic
• Horsepower (HP): 1/4 HP
• Ambient Temperature Range: 90°F to 110°F
• Saturated Suction Temperature Range: -30°F to 45°F
• Supply Voltage: 115V
• Connection Type: Sweat
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Oil Type: POE
• Frequency: 60Hz
• Condenser Location: Indoor
• Installation Location: Indoor
