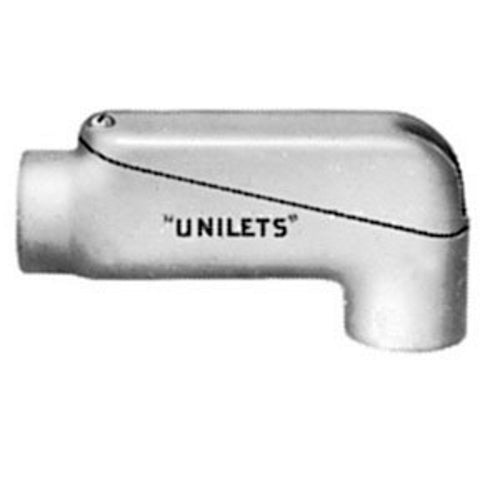

Emerson LBD75-M LBD Pulling Fitting 3/4 in Hub

Product Description

The Emerson LBD75-M is a pulling fitting designed for use in Rigid Metal and IMC conduit applications. The fitting provides a reliable means to facilitate the pulling of heavy and difficult-to-bend conductors. It features a three-quarter inch hub size and an eight cubic inch capacity, making it suitable for various cable installation tasks.

Key features include:

• Serves as a pulling fitting for heavy conductors.
• Facilitates making 90-degree bends in conduit.
• Can be used as a service entrance fitting.

Product Highlights

This pulling fitting is ideal for both residential and commercial installations where a secure and functional electrical connection is required.

Product Information

Standard Information

• Application: Rigid Metal and IMC Conduit Applications
• Color: Gray

Technical Specifications

• Connection Type: FNPT
• Dimensions: 6.19 in L x 1.5 in W x 2.75 in H
• Finish: Triple Coated
• Hub Size: 3/4 in
• Manufacturer Part Number: LBD75-M
• Material: Malleable Iron
• Number of Hubs: 2
• Standards/Approvals: UL 514B File No. E2527, CSA C22.2 No. 18.3/065183
• Type: Type LBD
