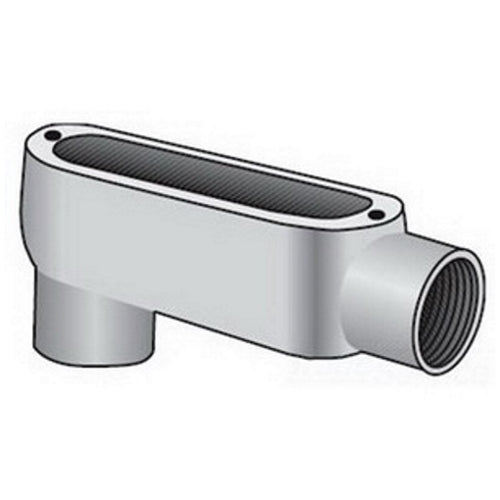

Emerson LB250 OZG Conduit Body 2-1/2 in Hub Type LB

Product Description

Emerson LB250 OZG Conduit Body is designed for use in rigid and intermediate metal conduit systems. This product features a two and half inch hub and provides access for splicing and maintenance of conductors. The conduit body is suitable for surface mounting and is constructed from malleable iron, ensuring durability and resistance to various environmental conditions.

• Two hubs for maximum flexibility in conduit runs
• High corrosion resistance due to aluminum enamel and zinc electroplated finish
• Designed for NEMA FB-1 applications

Product Highlights

This conduit body allows easy changes in the direction of conduit runs and connections, serving as a junction point for branch wiring.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312632876

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Connection Type: Tapered FNPT
• Dimensions: 13-3/4 inches L x 4-3/8 inches W
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 2-1/2 inches
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 2
• Standards/Approvals: ARRA Compliant | UL 514A File No. E18095 | C22.2 No. 18/009795 Certified | Federal Specification A-A-50563 | Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
• Type: Type LB
